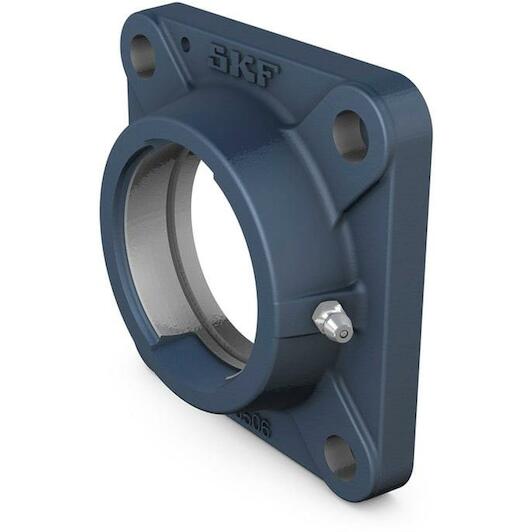

SKF FYJ 514 bearing housing with square flanges for insert bearing, cast iron, JIS

Supplier number: SKF FYJ 514 | EAN 7316570957570
Recommended Retail Price €310.46
153.60 tax incl.
€126.94 excl. VAT (incl. all environmental contributions)
On order: delivered from 21/10/2026

  • Delivery by DHL


€153.60
tax incl.

Product information

Key features according to our expert

  • Seat diameter: 125 mm
  • Material (bearing housing): Cast iron
  • Shape (bearing housing): Square

Product description

These square flanged housings for insert bearings are complaint with Japanese Industrial Standards (JIS). They are made of grey cast iron and can be bolted with four bolts to a machine wall or frame. They have been developed for bearing arrangements that must operate reliably in difficult environments.

  • Resist high levels of contamination
  • Accommodate relatively heavy loads

Documents

All Features

Seat diameter
125 mm
Material (bearing housing)
Cast iron
Shape (bearing housing)
Square
Fastening bolt hole type
Plain
Grease fitting
With
Spherical seating diameter
125
Housing type
Flanged
Flanged housing type
Square
Number of bolt holes for fasteners
4
Centre distance between bolt holes
152
Housing overall width
50.5
Relubrication hole
With
Coating
Without
Material, housing
Cast iron
  • Brand SKF
  • EAN 7316570957570
  • Supplier number SKF FYJ 514
