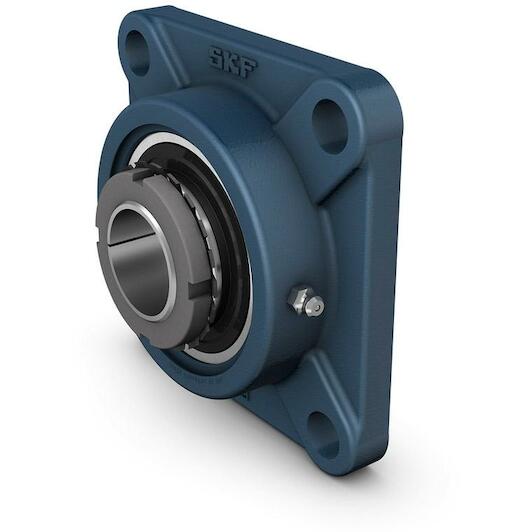

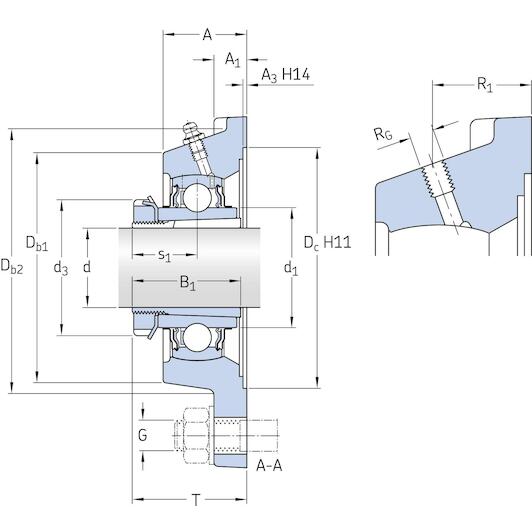

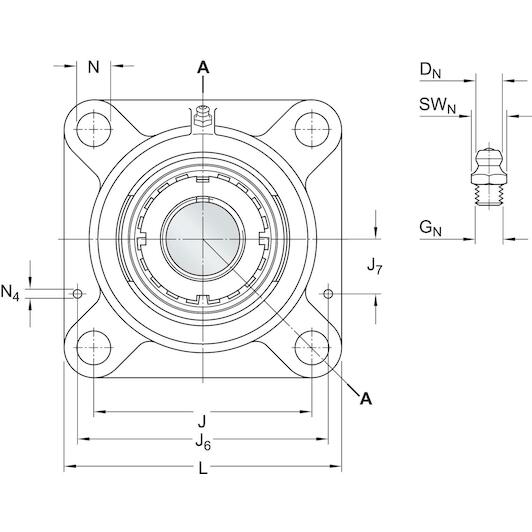

SKF FYJ 25 KF Y ball bearing unit with flange square, d 20 mm, A 27 mm, J 70 mm

Show more features

Shaft diameter

20 mm

Split

No

Material (bearing housing)

Stainless steel

Material (bearing)

Steel

High temperature

No

Bore type

Tapered

Shape (bearing housing)

Square

Lubricant

Grease

Bearing width, total

24 mm

Material, housing

Cast iron

Basic static load rating

7.8 kN

Number of bolt holes for fasteners

4

Sealing, bearing

Seal and flinger on both sides

Rubber seating ring

Without

Sealing type

Contact, standard

Centre distance between bolt holes

70 mm

Material, bearing

Bearing steel

Flanged housing type

Square

Retaining feature, inner ring

Adapter sleeve

Limiting speed

7,000 r/min

Grease fitting

With

Sealing, unit

Without

Width, total

36.25 mm

Fastening bolt hole type

Plain

Relubrication hole

With

Housing overall width

27 mm

Basic dynamic load rating

14 kN

Coating

Without

Housing type

Flanged
