What shaft diameter is this bearing unit suitable for?

The SKF FYC 60 TF is designed for shafts with a 60 mm diameter.

How is the shaft secured in the bearing?

The shaft is locked in place using set screws in the extended inner ring of the insert bearing.

What type of housing does this unit feature?

It features a non-split, round cast iron flange housing with 4 bolt holes, compliant with JIS standards.

Can this flanged bearing unit be relubricated?

Yes, the cast iron housing is fitted with a grease nipple for routine maintenance and relubrication.

Is this unit suitable for alternating directions of rotation?

Yes, the set screw locking mechanism is suitable for both constant and alternating directions of rotation.

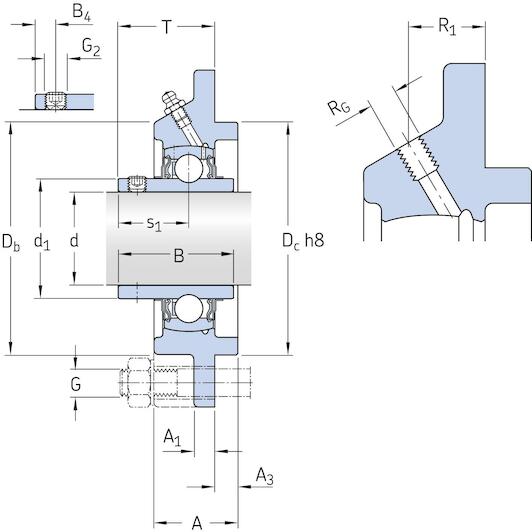

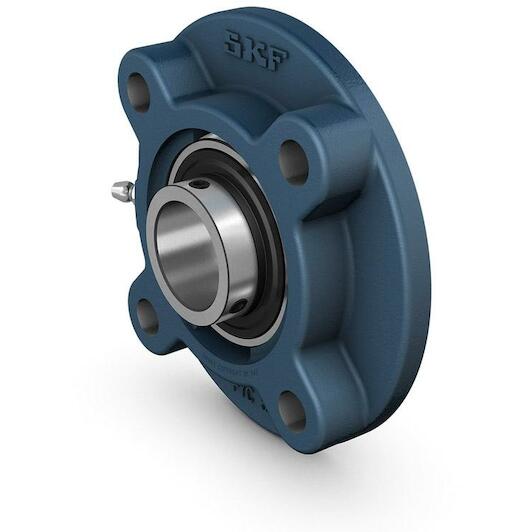

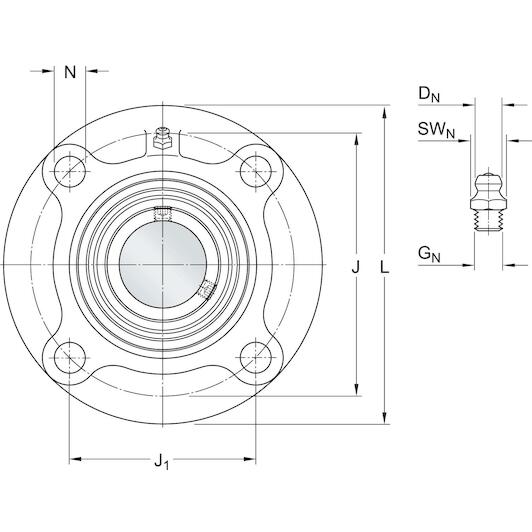

SKF FYC 60 TF Y-bearing unit with flange Round, d 60 mm, A 48 mm, J

Supplier number: SKF FYC 60 TF | EAN 7316570415490

Recommended Retail Price €395.40

195.60 tax incl.

€161.65 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Dependable shaft mounting for demanding mechanical assemblies

Practical benefits

Secure set screw locking: You achieve a firm and slip-free grip directly onto the 60 mm shaft during operation.
Durable cast iron housing: The solid round flange design offers exceptional structural rigidity under constant and alternating rotational loads.
Smooth performance by Skf: Precision-engineered bearing steel components ensure consistent rotation and extended service life in heavy-duty machinery.

In a nutshell

The right choise for

With the Skf fyc 60 tf flanged bearing unit, you mount a 60 mm shaft quickly and securely onto flat machine walls or perpendicular frames. The robust, round cast iron housing compliant with jis standards delivers outstanding mechanical stability under both constant and alternating rotational directions. Thanks to the set screw locking mechanism on the extended inner ring, you achieve a firm, slip-free grip on the shaft, while the steel ball bearing accommodates minor initial misalignment. Supplied ready to mount and fitted with a grease nipple for regular relubrication, this unit keeps conveyors and production lines running smoothly.

Product information FAQ

€195.60

In stock - tax incl.

Key features according to our expert

Shaft diameter: 60 mm
Split: No
Material (bearing housing): Stainless steel
Material (bearing): Steel
High temperature: No
Bore type: Cylindrical
Shape (bearing housing): Round

Product description

These round flanged ball bearing units are compliant with Japanese Industrial Standards (JIS). They consist of an insert bearing, with an extended inner ring and set screw locking, and are suitable for applications where the direction of rotation is constant or alternating. The bearing is mounted in a cast iron housing, which can be bolted to a machine wall or frame. Ball bearing units can accommodate moderate initial misalignment, but normally do not permit axial displacement.

Resist high levels of contamination
Designed for high temperatures and speeds
Accommodate relatively heavy loads
Cost-effective

Documents

⤓ Technical data sheet PDF

All Features

Shaft diameter: 60 mm
Split: No
Material (bearing housing): Stainless steel
Material (bearing): Steel
High temperature: No
Bore type: Cylindrical
Shape (bearing housing): Round
Lubricant: Grease
Rubber seating ring: Without
Sealing type: Contact, standard
Sealing, bearing: Seal and flinger on both sides
Material, bearing: Bearing steel
Note: Limiting speed with shaft tolerance h6
Flanged housing type: Round
Housing type: Flanged
Application: For agricultural applications
Basic static load rating: 36
Hexagonal key size for set screw: 5
Tightening torque, set screw: 16.5
Grease fitting: With
Material, housing: Cast iron
Number of bolt holes for fasteners: 4
Attachment bolt diameter: 16
Bearing width, total: 65.1
Basic dynamic load rating: 52.7
Coating: Without
Housing overall width: 48
Retaining feature, inner ring: Set screws
Relubrication hole: With
Fastening bolt hole type: Plain
Limiting speed: 3400
Width, total: 56.7
Sealing, unit: Without
Pitch diameter of bolt holes of round and triangle flange type housing: 160
Set screw: M10x1

Brand SKF
01193064
EAN 7316570415490
Supplier number SKF FYC 60 TF

Frequently asked questions about this product

Answered by specialists

What shaft diameter is this bearing unit suitable for?: The SKF FYC 60 TF is designed for shafts with a 60 mm diameter.
How is the shaft secured in the bearing?: The shaft is locked in place using set screws in the extended inner ring of the insert bearing.
What type of housing does this unit feature?: It features a non-split, round cast iron flange housing with 4 bolt holes, compliant with JIS standards.
Can this flanged bearing unit be relubricated?: Yes, the cast iron housing is fitted with a grease nipple for routine maintenance and relubrication.
Is this unit suitable for alternating directions of rotation?: Yes, the set screw locking mechanism is suitable for both constant and alternating directions of rotation.
