What shaft diameter is this flanged unit designed for?

The SKF FYC 40 TF is specifically designed for a shaft diameter of 40 mm.

How is the shaft secured in the bearing?

The shaft is locked securely in place using set screws in the extended inner ring.

What is the housing shape and material?

The non-split unit features a round flanged housing made of durable cast iron according to JIS standards.

How many mounting holes does this round flange unit have?

The unit features 4 mounting holes for rigid mounting to a frame or machine wall.

Can this flanged bearing unit be relubricated?

Yes, it includes a grease fitting for routine relubrication during maintenance.

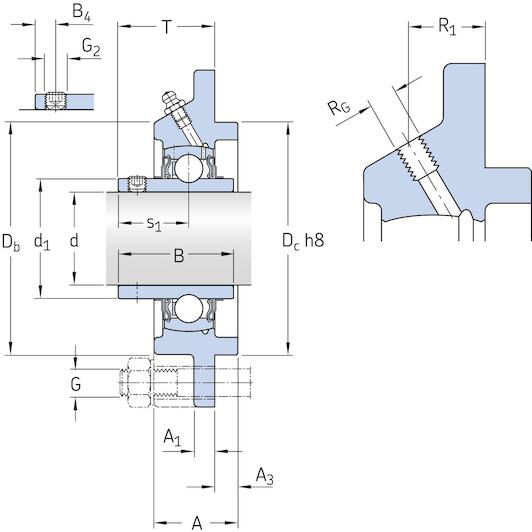

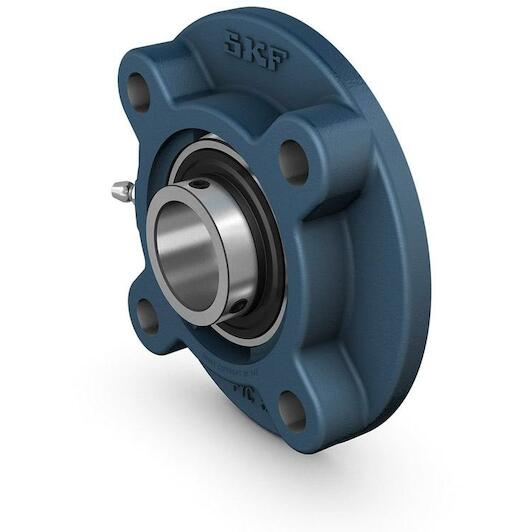

SKF FYC 40 TF Y-bearing unit with flange Round, d 40 mm, A 35.5 mm, J

Supplier number: SKF FYC 40 TF | EAN 7316570380637

Recommended Retail Price €204.31

100.95 tax incl.

€83.43 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 8 products in stock.

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Reliable shaft support for machinery

Practical benefits

Quick and secure mounting: You achieve a firm grip on 40 mm shafts quickly using the Skf set screw locking system.
Durable cast iron housing: The round cast iron housing provides maximum structural stability and withstands heavy mechanical loads reliably.
Effective seal against contamination: You prevent dust and debris from entering the bearing cavity with the robust integrated sealing design.

In a nutshell

The right choise for

With the Skf fyc 40 TF, you get a solid, ready-to-mount bearing solution for vertical machine frames and panels. Engineered for 40 mm shafts, this round flanged unit delivers dependable support in conveyor systems, packaging lines, and industrial drive shafts. The robust one-piece cast iron housing with 4 mounting holes reliably handles heavy mechanical loads, while the spherical outer surface easily accommodates minor initial misalignments. Securing your shaft is quick and firm thanks to the set screw locking system on the extended inner ring. Combined with integrated seals that block dirt and a grease fitting for simple relubrication, you maintain smooth, dependable machine operation.

Product information FAQ

€100.95

In stock - tax incl.

Key features according to our expert

Shaft diameter: 40 mm
Split: No
Material (bearing housing): Stainless steel
Material (bearing): Steel
High temperature: No
Bore type: Cylindrical
Shape (bearing housing): Round

Product description

These round flanged ball bearing units are compliant with Japanese Industrial Standards (JIS). They consist of an insert bearing, with an extended inner ring and set screw locking, and are suitable for applications where the direction of rotation is constant or alternating. The bearing is mounted in a cast iron housing, which can be bolted to a machine wall or frame. Ball bearing units can accommodate moderate initial misalignment, but normally do not permit axial displacement.

Resist high levels of contamination
Designed for high temperatures and speeds
Accommodate relatively heavy loads
Cost-effective

Documents

⤓ Technical data sheet PDF

All Features

Shaft diameter: 40 mm
Split: No
Material (bearing housing): Stainless steel
Material (bearing): Steel
High temperature: No
Bore type: Cylindrical
Shape (bearing housing): Round
Lubricant: Grease
Rubber seating ring: Without
Sealing type: Contact, standard
Sealing, bearing: Seal and flinger on both sides
Material, bearing: Bearing steel
Note: Limiting speed with shaft tolerance h6
Flanged housing type: Round
Housing type: Flanged
Application: For agricultural applications
Basic static load rating: 19
Hexagonal key size for set screw: 4
Tightening torque, set screw: 6.5
Grease fitting: With
Material, housing: Cast iron
Number of bolt holes for fasteners: 4
Attachment bolt diameter: 12
Bearing width, total: 49.2
Basic dynamic load rating: 30.7
Coating: Without
Housing overall width: 35.5
Retaining feature, inner ring: Set screws
Relubrication hole: With
Fastening bolt hole type: Plain
Limiting speed: 4800
Width, total: 41.2
Sealing, unit: Without

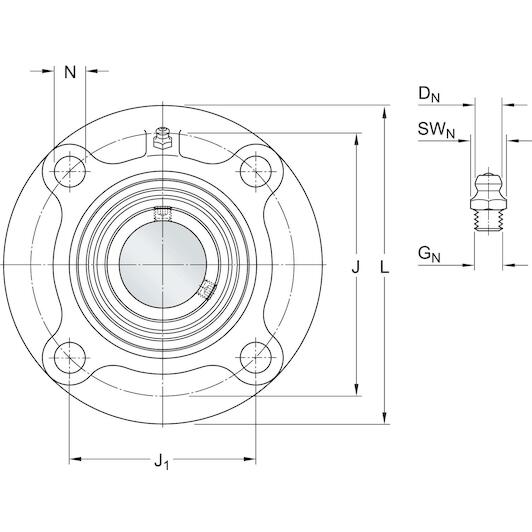

Pitch diameter of bolt holes of round and triangle flange type housing: 120
Set screw: M8x1

Brand SKF
01190762
EAN 7316570380637
Supplier number SKF FYC 40 TF

Frequently asked questions about this product

Answered by specialists

What shaft diameter is this flanged unit designed for?: The SKF FYC 40 TF is specifically designed for a shaft diameter of 40 mm.
How is the shaft secured in the bearing?: The shaft is locked securely in place using set screws in the extended inner ring.
What is the housing shape and material?: The non-split unit features a round flanged housing made of durable cast iron according to JIS standards.
How many mounting holes does this round flange unit have?: The unit features 4 mounting holes for rigid mounting to a frame or machine wall.
Can this flanged bearing unit be relubricated?: Yes, it includes a grease fitting for routine relubrication during maintenance.
