SKF

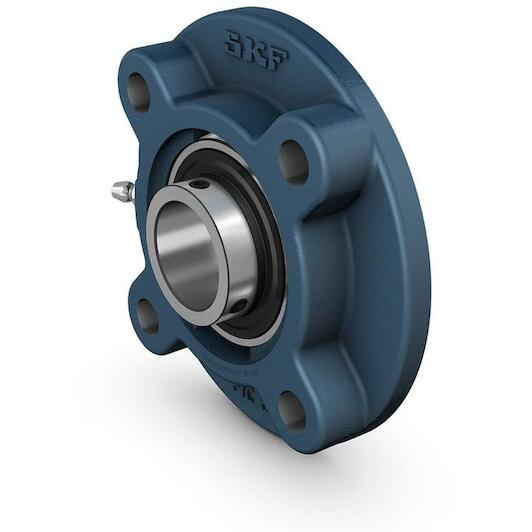

SKF FYC 20 TF Y ball bearing unit with flange Round, d 20 mm, A 25.5 mm, J

Recommended Retail Price €104.97
51.80 tax incl.
€42.81 excl. VAT (incl. all environmental contributions)
On order: delivered from 28/05/2026
each

  • Delivery by DHL

Product description

These round flanged ball bearing units are compliant with Japanese Industrial Standards (JIS). They consist of an insert bearing, with an extended inner ring and set screw locking, and are suitable for applications where the direction of rotation is constant or alternating. The bearing is mounted in a cast iron housing, which can be bolted to a machine wall or frame. Ball bearing units can accommodate moderate initial misalignment, but normally do not permit axial displacement.

  • Resist high levels of contamination
  • Designed for high temperatures and speeds
  • Accommodate relatively heavy loads
  • Cost-effective
Key features according to our expert
  • Shaft diameter: 20 mm
  • Split: No
  • Material (bearing housing): Stainless steel
  • Material (bearing): Steel
  • High temperature: No
  • Bore type: Cylindrical
  • Shape (bearing housing): Round
Specifications / All features
  • Brand: SKF
  • EAN: 7316570814248
  • Supplier number: SKF FYC 20 TF
Shaft diameter
20 mm
Split
No
Material (bearing housing)
Stainless steel
Material (bearing)
Steel
High temperature
No
Bore type
Cylindrical
Shape (bearing housing)
Round
Lubricant
Grease
Rubber seating ring
Without
Sealing type
Contact, standard
Sealing, bearing
Seal and flinger on both sides
Material, bearing
Bearing steel
Note
Limiting speed with shaft tolerance h6
Flanged housing type
Round
Housing type
Flanged
Application
For agricultural applications
Basic static load rating
6.55
Hexagonal key size for set screw
3
Tightening torque, set screw
4
Grease fitting
With
Material, housing
Cast iron
Number of bolt holes for fasteners
4
Attachment bolt diameter
10
Bearing width, total
31
Basic dynamic load rating
12.7
Coating
Without
Housing overall width
25.5
Retaining feature, inner ring
Set screws
Relubrication hole
With
Fastening bolt hole type
Plain
Limiting speed
8500
Width, total
28.3
Sealing, unit
Without
Pitch diameter of bolt holes of round and triangle flange type housing
78
Set screw
M6x0.75
