SKF

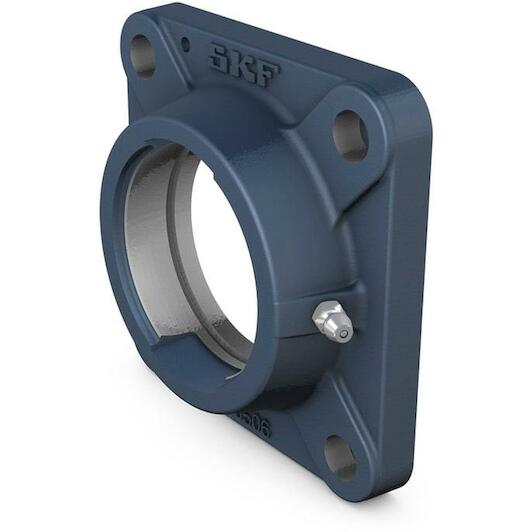

SKF FY 511 M bearing housing with square flanges for insert bearings, cast iron

Recommended Retail Price €109.43
53.95 tax incl.
€44.59 excl. VAT (incl. all environmental contributions)
On stock, immediately available. we have 2 products in stock.
each

  • Delivery by DHL

Product description

These square flanged housings for insert bearings are made of grey cast iron and can be bolted with four bolts to a machine wall or frame. They have been developed for bearing arrangements that must operate reliably in difficult environments.

  • Resist high levels of contamination
  • Accommodate relatively heavy loads
Key features according to our expert
  • Seat diameter: 100 mm
  • Material (bearing housing): Cast iron
  • Shape (bearing housing): Square
Specifications / All features
  • Brand: SKF
  • EAN: 7316570194913
  • Supplier number: SKF FY 511 M
Seat diameter
100 mm
Material (bearing housing)
Cast iron
Shape (bearing housing)
Square
Fastening bolt hole type
Plain
Grease fitting
With
Spherical seating diameter
100
Housing type
Flanged
Flanged housing type
Square
Number of bolt holes for fasteners
4
Centre distance between bolt holes
130
Housing overall width
47.5
Relubrication hole
With
Coating
Without
Material, housing
Cast iron
