Which shaft diameter is compatible with this bearing unit?

This flanged bearing unit has a cylindrical bore designed for 50 mm diameter shafts.

How is the bearing secured to the shaft?

It is locked onto the shaft using an eccentric locking collar, ideal for constant rotational directions.

What is the center-to-center mounting hole distance?

The center distance between the bolt holes (J dimension) is 111 mm.

Can this cast iron housing be relubricated?

Yes, the cast iron housing is equipped with a grease fitting for relubrication.

What is the limiting speed of this unit?

The limiting speed for this SKF bearing unit is 4000 rpm.

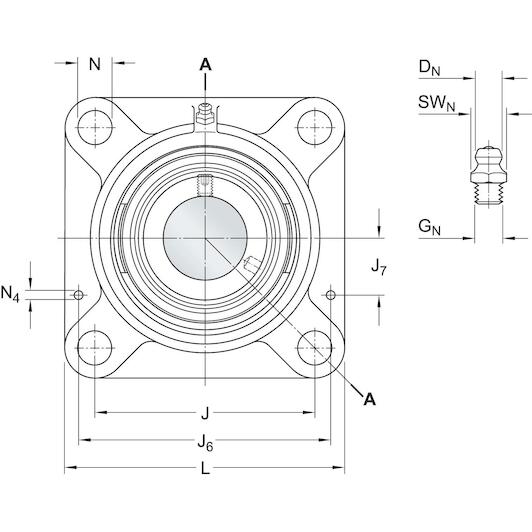

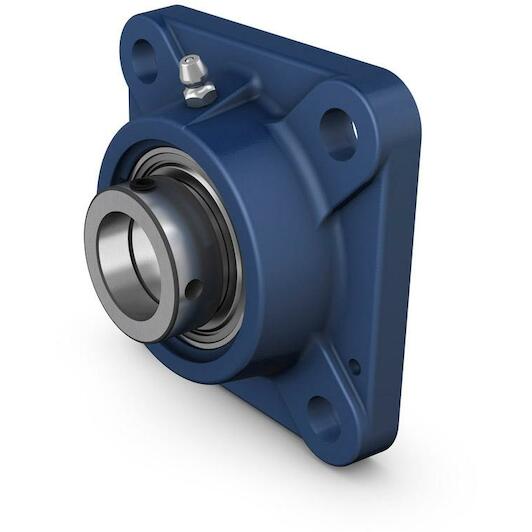

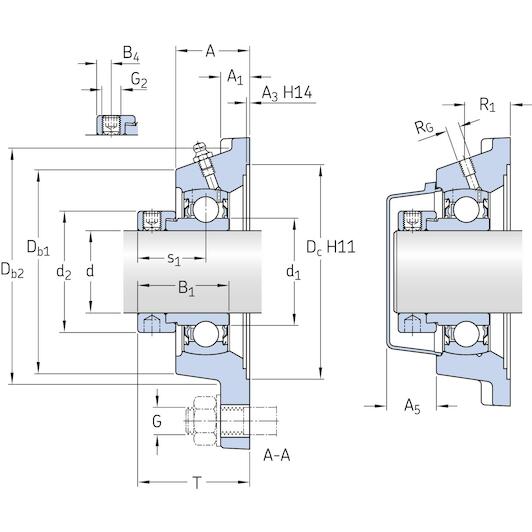

SKF FY 50 FM Y ball bearing unit with flange square, d 50 mm, A 43 mm, J 111 mm

Supplier number: SKF FY 50 FM | EAN 7316577043184

Recommended Retail Price €231.74

114.60 tax incl.

€94.71 excl. VAT (incl. all environmental contributions)

On order: delivered from 15/10/2026

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Dependable shaft support for industrial machinery

Practical benefits

Secure mounting by Skf: The cast iron housing provides a rigid foundation that you bolt securely onto machine frames.
Firm eccentric collar locking: You achieve quick, slip-free locking on 50 mm shafts designed for single-direction rotational setups.
Tolerates initial shaft misalignment: The durable steel insert bearing accommodates moderate mounting misalignments for smooth, uninterrupted rotation.

In a nutshell

The right choise for

With the Skf fy 50 fm flanged bearing unit, you mount a 50 mm shaft securely onto machine frames, conveyor systems, or production lines. The durable cast iron housing provides a rigid base that bolts into place using four holes with a 111 mm center-to-center distance. Thanks to the eccentric locking collar, you achieve fast, slip-free shaft locking for constant rotational directions. The built-in steel bearing accommodates minor initial misalignments while handling speeds up to 4000 rpm. An integrated grease fitting makes routine relubrication simple for dependable, long-term operation.

Product information FAQ

€114.60

tax incl.

Key features according to our expert

Shaft diameter: 50 mm
Split: No
Material (bearing housing): Stainless steel
Material (bearing): Steel
High temperature: No
Bore type: Cylindrical
Shape (bearing housing): Square

Product description

These square flanged ball bearing units are compliant with ISO standards. They consist of an insert bearing, with a narrow inner ring and eccentric locking, and are intended primarily for use in applications where the direction of rotation is constant. The bearing is mounted in a cast iron housing, which can be bolted to a machine wall or frame. Ball bearing units can accommodate moderate initial misalignment, but normally do not permit axial displacement.

Resist high levels of contamination
Designed for high temperatures and speeds
Accommodate relatively heavy loads
Cost-effective

Documents

⤓ Technical data sheet PDF

All Features

Shaft diameter: 50 mm
Split: No
Material (bearing housing): Stainless steel
Material (bearing): Steel
High temperature: No
Bore type: Cylindrical
Shape (bearing housing): Square
Lubricant: Grease
Rubber seating ring: Without
Sealing type: Contact, standard
Sealing, bearing: Seal on both sides
Material, bearing: Bearing steel
Note: Limiting speed with shaft tolerance h6
Flanged housing type: Square
Housing type: Flanged
Application: For material handling applications
Basic static load rating: 23.2
Hexagonal key size for set screw: 5
Tightening torque, set screw: 16.5
Grease fitting: With
Material, housing: Cast iron
Number of bolt holes for fasteners: 4
Attachment bolt diameter: 16
Bearing width, total: 43.7
Basic dynamic load rating: 35.1
Coating: Without
Housing overall width: 43
Retaining feature, inner ring: Eccentric collar
Relubrication hole: With
Fastening bolt hole type: Plain
Limiting speed: 4000
Width, total: 60.7
Sealing, unit: Optional end cover
Centre distance between bolt holes: 111
Set screw: M10x1

Brand SKF
01190548
EAN 7316577043184
Supplier number SKF FY 50 FM

Frequently asked questions about this product

Answered by specialists

Which shaft diameter is compatible with this bearing unit?: This flanged bearing unit has a cylindrical bore designed for 50 mm diameter shafts.
How is the bearing secured to the shaft?: It is locked onto the shaft using an eccentric locking collar, ideal for constant rotational directions.
What is the center-to-center mounting hole distance?: The center distance between the bolt holes (J dimension) is 111 mm.
Can this cast iron housing be relubricated?: Yes, the cast iron housing is equipped with a grease fitting for relubrication.
What is the limiting speed of this unit?: The limiting speed for this SKF bearing unit is 4000 rpm.
