What is the purpose of the SKF FRB 14/120 locating ring?

You use this ring to axially secure a bearing inside a housing when the housing seat is wider than the bearing width.

What are the exact dimensions of this locating ring?

The ring has an outer diameter of 120 mm, an inner diameter of 110 mm, and a width of 14 mm.

How many locating rings are typically required per housing?

Typically, two locating rings are needed per housing, placed on either side of the locating bearing.

What does the designation FRB 14/120 stand for?

FRB denotes the locating ring series, 14 indicates the width in millimetres, and 120 is the outer diameter in millimetres.

SKF FRB 14/120 circlip 110 x 120 x 14 mm

Supplier number: SKF FRB 14/120 | EAN 7316577017321

Recommended Retail Price €25.08

12.40 tax incl.

€10.25 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 3 products in stock.

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Reliable axial fixing with Skf

Practical benefits

Accurate axial positioning: You secure the bearing firmly in the housing, preventing unwanted axial displacement during operation.
Exact dimensional fit: With precise dimensions of 110 x 120 x 14 mm, you bridge the width difference inside the housing seat effortlessly.
Durable steel construction: The rugged build ensures your assembly withstands demanding mechanical loads across various industrial applications.

In a nutshell

The right choise for

With the Skf frb 14/120 locating ring, you secure bearings accurately and reliably inside the housing seat. When the housing seat is wider than the bearing, this rugged steel ring measuring 110 x 120 x 14 mm bridges the clearance effortlessly. This prevents unwanted axial displacement during operation and allows you to create a stable locating bearing arrangement. Its precise dimensional fit keeps your shaft aligned and protected against heavy industrial loads.

Product information FAQ

€12.40

In stock - tax incl.

Key features according to our expert

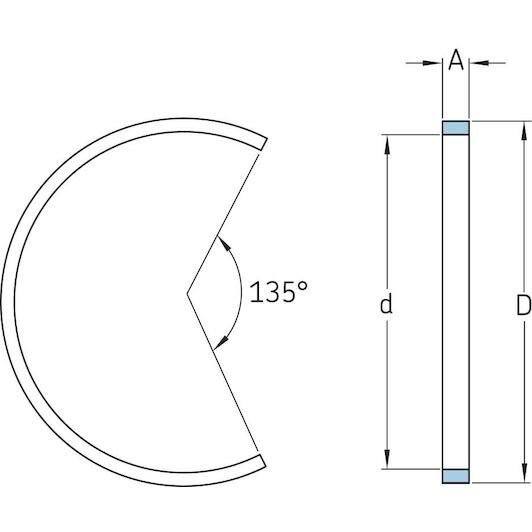

Inner diameter: 110 mm
Outer diameter: 120 mm
Width: 14 mm

Product description

A bearing in the locating position must be secured axially in the housing. If the bearing seat in the housing and the bearing width do not match, locating (stabilizing) rings are required. Typically, two locating rings are required per housing. One ring should be placed on each side of the bearing. If only one locating ring is required, it should be installed on the same side as the lock nut.

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 110 mm
Outer diameter: 120 mm
Width: 14 mm
Outer diameter: 120
Inner diameter: 110
Accessory type: Locating ring

Brand SKF
01230084
EAN 7316577017321
Supplier number SKF FRB 14/120

Frequently asked questions about this product

Answered by specialists

What is the purpose of the SKF FRB 14/120 locating ring?: You use this ring to axially secure a bearing inside a housing when the housing seat is wider than the bearing width.
What are the exact dimensions of this locating ring?: The ring has an outer diameter of 120 mm, an inner diameter of 110 mm, and a width of 14 mm.
How many locating rings are typically required per housing?: Typically, two locating rings are needed per housing, placed on either side of the locating bearing.
What does the designation FRB 14/120 stand for?: FRB denotes the locating ring series, 14 indicates the width in millimetres, and 120 is the outer diameter in millimetres.
