SKF BEAM 012055 C-2RSH super-precision double-row angular contact ball bearing double-sided working 12 x 55 x 25 mm

Recommended Retail Price €1,147.87

568.20 tax incl.

€469.59 excl. VAT (incl. all environmental contributions)

SKF BEAM 012055 C-2RSH super-precision double-row angular contact ball bearing double-sided working 12 x 55 x 25 mm

€568.20 Recommended Retail Price €1,147.87

On order: delivered from 28/05/2026

each

Delivery by DHL

Product information
Additional info

Product description

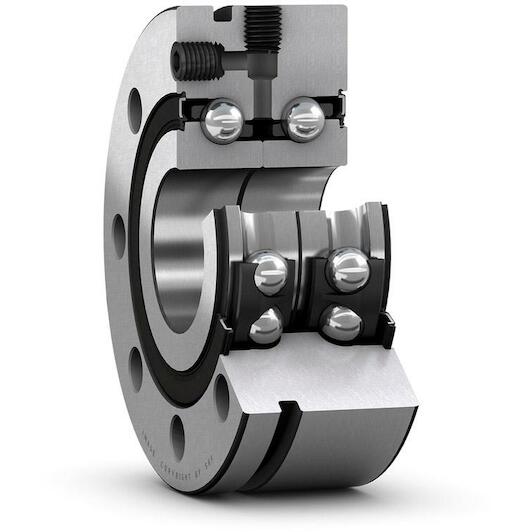

These double direction angular contact thrust ball bearings are well suited for screw drive applications, but are also beneficial in other applications, where reliable radial and axial support is required, together with extremely precise axial guidance of the shaft. The BEAM series bearings have an outer ring that is much thicker than with the BEAS series, and they are equipped with through holes for attachment bolts, which makes the mounting process simple.

Accommodate radial loads, and axial loads in both directions
Greased and sealed as standard
Ready to mount
Easy to relubricate

Key features according to our expert

Inner diameter: 12 mm
Width: 25 mm
Number of rows: 2
Seal (bearing): Double-sided sealed
Material (bearing seal): Rubber
Outer diameter: 55 mm

Specifications / All features

Brand: SKF
01051649
EAN: 7316577857446
Supplier number: SKF BEAM 012055 C-2RSH

Inner diameter: 12 mm
Width: 25 mm
Number of rows: 2
Seal (bearing): Double-sided sealed
Material (bearing seal): Rubber
Outer diameter: 55 mm
Housing washer type (double-row angular contact thrust ball bearings): One-piece
Attainable speed for grease lubrication: 5400
Cage: Non-metallic
Sealing type: Contact
Lubricant: Grease
Relubrication feature: With
Basic static load rating: 30

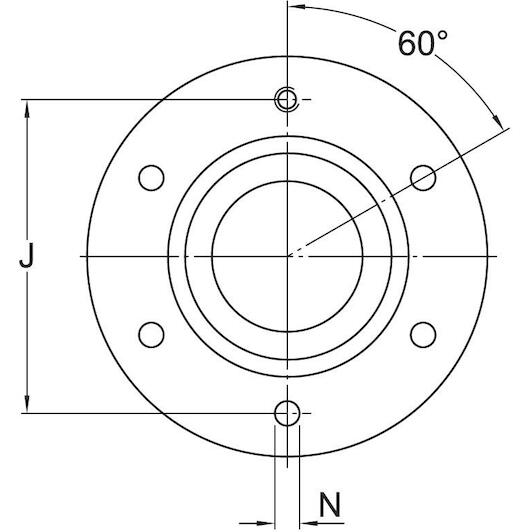

Locating feature, bearing outer ring: Bolt holes
Sealing: Seal on both sides
Contact angle: 60
Axial load capability: Double-direction
Bore diameter: 12
Basic dynamic load rating: 19.6
Height: 25
Outside diameter: 55
Single bearing, universally matchable, delivered individually: No
