SKF

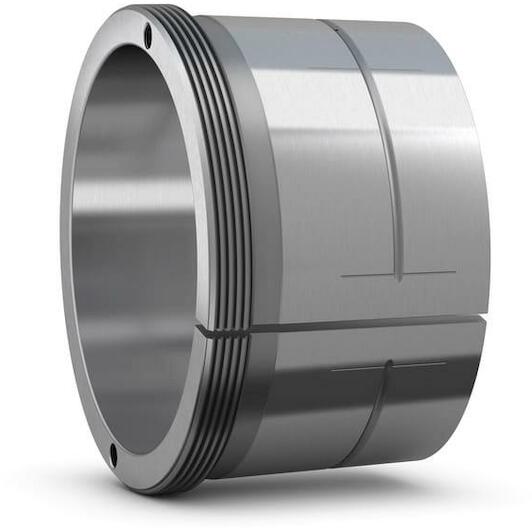

SKF AOH 24060 G pressure bushing 280xx184 mm Tr320x5

Recommended Retail Price €5,093.04
2,521.40 tax incl.
€2,083.80 excl. VAT (incl. all environmental contributions)
On order: delivered from 28/05/2026
each

  • Delivery by DHL

Product description

Withdrawal sleeves are slit tapered sleeves that are used to mount bearings with a tapered bore onto the cylindrical seat of stepped shafts. This AOH(X) sleeve has dimensions in accordance with ISO standards and are designed for oil injection mounting and dismounting. The sleeve is located on the shaft by a lock nut or an end plate. The lock nuts and appropriate locking device can be ordered separately. End plates are not manufactured by SKF.

  • Cost effective
  • Good mounting and dismounting control
  • Less manual effort
  • Greater operator safety
Key features according to our expert
  • Inner diameter: 280 mm
  • Width: 184 mm
  • Thread nominal size*: Tr320 x 5
Specifications / All features
  • Brand: SKF
  • EAN: 7316570657661
  • Supplier number: SKF AOH 24060 G
Inner diameter
280 mm
Width
184 mm
Thread nominal size*
Tr320 x 5
Bore diameter
280
Taper
1:30
Holes for oil injection
With
Thread designation
Tr 320x5
