SKF

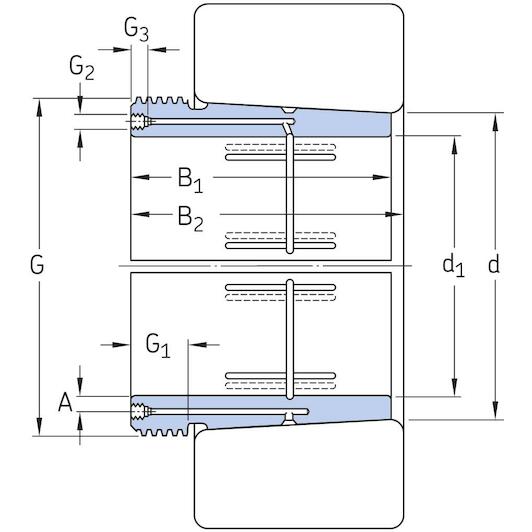

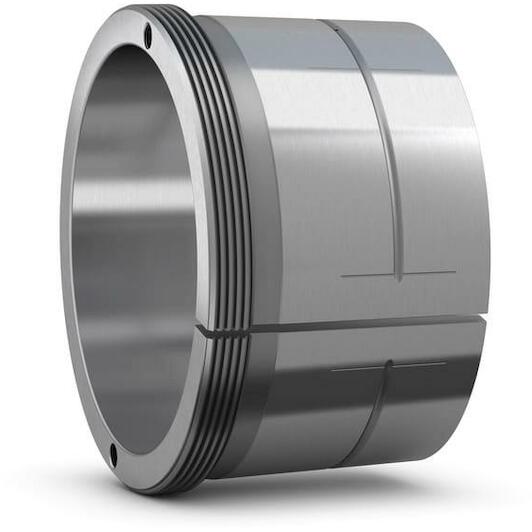

SKF AOH 2356 G pressure bush 260xx212 mm Tr300x4

Recommended Retail Price €3,472.51
1,719.20 tax incl.
€1,420.83 excl. VAT (incl. all environmental contributions)
On order: delivered from 28/05/2026
each

  • Delivery by DHL

Product description

Withdrawal sleeves are slit tapered sleeves that are used to mount bearings with a tapered bore onto the cylindrical seat of stepped shafts. This AOH(X) sleeve has dimensions in accordance with ISO standards and are designed for oil injection mounting and dismounting. The sleeve is located on the shaft by a lock nut or an end plate. The lock nuts and appropriate locking device can be ordered separately. End plates are not manufactured by SKF.

  • Cost effective
  • Good mounting and dismounting control
  • Less manual effort
  • Greater operator safety
Key features according to our expert
  • Inner diameter: 260 mm
  • Width: 212 mm
  • Thread nominal size*: Tr300 x 4
Specifications / All features
  • Brand: SKF
  • EAN: 7316570672572
  • Supplier number: SKF AOH 2356 G
Inner diameter
260 mm
Width
212 mm
Thread nominal size*
Tr300 x 4
Bore diameter
260
Taper
1:12
Holes for oil injection
With
Thread designation
Tr 300x4
