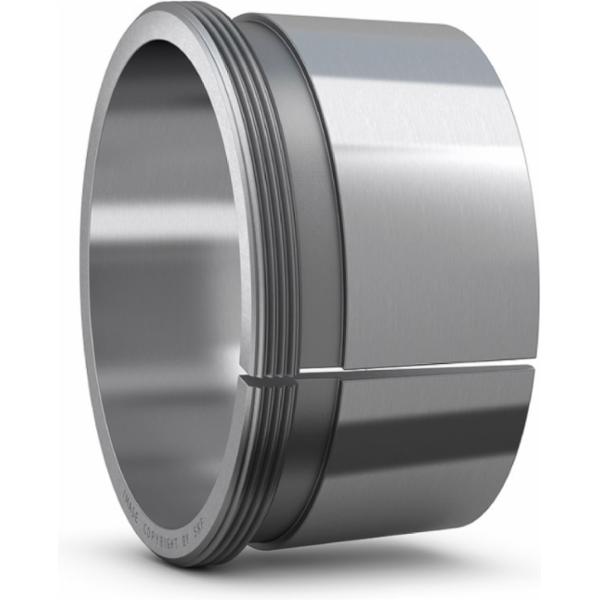

SKF AHX 3124/110 pressure bushing 110xx75mm M130x2

Supplier number: SKF AHX 3124/110 | EAN 7316570535969
Recommended Retail Price €900.14
445.60 tax incl.
€368.26 excl. VAT (incl. all environmental contributions)
On order: delivered from 04/12/2026

  • Delivery by DHL


€445.60
tax incl.

Product information

Key features according to our expert

  • Inner diameter: 110 mm
  • Width: 75 mm
  • Thread size*: M130 x 2
  • With oil injection holes: No

Product description

  • Withdrawal sleeves are slit tapered sleeves that are used to mount bearings with a tapered bore onto the cylindrical seat of stepped shafts. This AH(X) sleeve has dimensions in accordance with ISO standards and is a basic design for mounting and dismounting. The sleeve is located on the shaft by a lock nut or an end plate. The lock nuts and appropriate locking device can be ordered separately. End plates are not manufactured by SKF.

Avantages

  • Cost effective
  • Quick and easy mounting

Documents

All Features

Inner diameter
110 mm
Width
75 mm
Thread size*
M130 x 2
With oil injection holes
No
Bore diameter
110 mm
Taper
1:12
Holes for oil injection
Without
Thread designation
M 130x2
  • Brand SKF
  • EAN 7316570535969
  • Supplier number SKF AHX 3124/110
