SKF

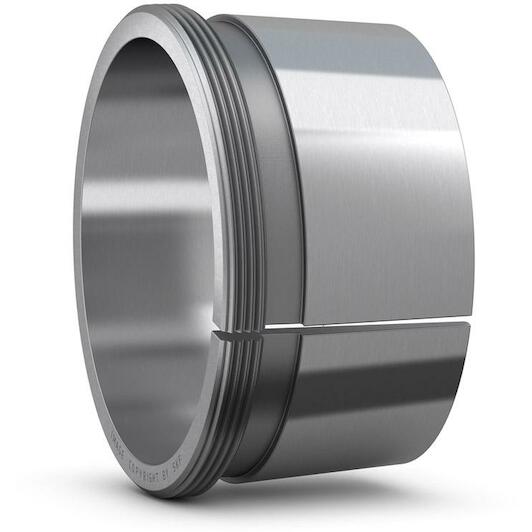

SKF AHX 3120 pressure bushing 95xx64mm M110x2

Recommended Retail Price €328.43
162.60 tax incl.
€134.38 excl. VAT (incl. all environmental contributions)
On order: delivered from 03/06/2026
each

  • Delivery by DHL

Product description

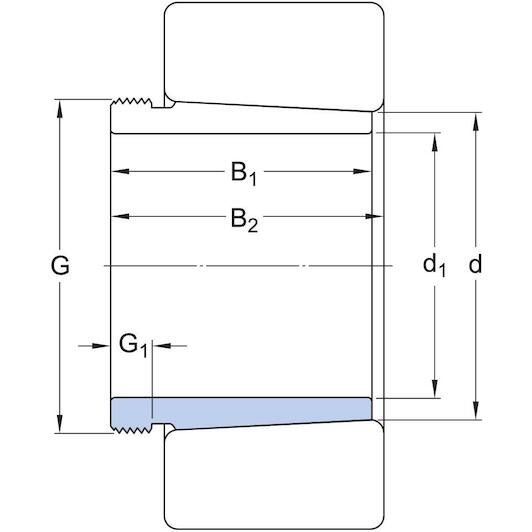

Withdrawal sleeves are slit tapered sleeves that are used to mount bearings with a tapered bore onto the cylindrical seat of stepped shafts. This AH(X) sleeve has dimensions in accordance with ISO standards and is a basic design for mounting and dismounting. The sleeve is located on the shaft by a lock nut or an end plate. The lock nuts and appropriate locking device can be ordered separately. End plates are not manufactured by SKF.

  • Cost effective
  • Quick and easy mounting
Key features according to our expert
  • Inner diameter: 95 mm
  • Width: 64 mm
  • Thread nominal size*: M110 x 2
Specifications / All features
  • Brand: SKF
  • EAN: 7316577013439
  • Supplier number: SKF AHX 3120
Inner diameter
95 mm
Width
64 mm
Thread nominal size*
M110 x 2
Bore diameter
95
Taper
1:12
Holes for oil injection
Without
Thread designation
M 110x2
