SKF

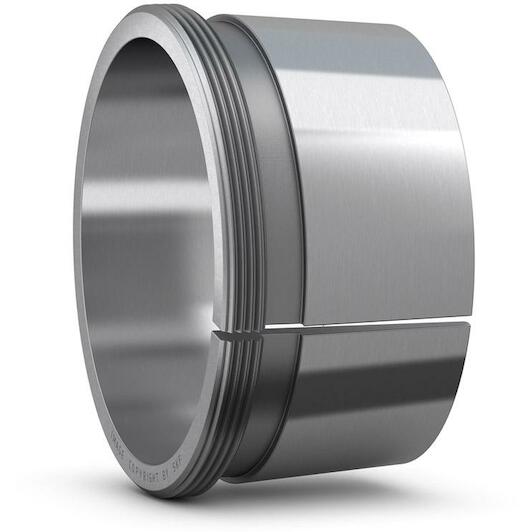

SKF AH 2313 G pressure bush 60xx61mm M70x2

Recommended Retail Price €205.39
101.60 tax incl.
€83.97 excl. VAT (incl. all environmental contributions)
On order: delivered from 28/05/2026
each

  • Delivery by DHL

Product description

Withdrawal sleeves are slit tapered sleeves that are used to mount bearings with a tapered bore onto the cylindrical seat of stepped shafts. This AH(X) sleeve has dimensions in accordance with ISO standards and is a basic design for mounting and dismounting. The sleeve is located on the shaft by a lock nut or an end plate. The lock nuts and appropriate locking device can be ordered separately. End plates are not manufactured by SKF.

  • Cost effective
  • Quick and easy mounting
Key features according to our expert
  • Inner diameter: 60 mm
  • Width: 61 mm
  • Thread nominal size*: M70 x 2
Specifications / All features
  • Brand: SKF
  • EAN: 7316570914825
  • Supplier number: SKF AH 2313 G
Inner diameter
60 mm
Width
61 mm
Thread nominal size*
M70 x 2
Bore diameter
60
Taper
1:12
Holes for oil injection
Without
Thread designation
M 70x2
