SKF 81210 TN single-row cylindrical roller bearing single acting 50 x 78 mm

Supplier number: SKF 81210 TN | EAN 7316570590517

Recommended Retail Price €273.81

135.40 tax incl.

€111.90 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Heavy axial support with Skf

Practical benefits

High axial load capacity: You handle heavy single-direction axial and peak loads effortlessly with durable cylindrical rollers.
Quick and easy mounting: The separable design allows you to assemble and interchange individual bearing components with ease.
Compact and stiff design: The lightweight polymer cage delivers high rigidity within a minimal axial height of 22 mm.

In a nutshell

The right choise for

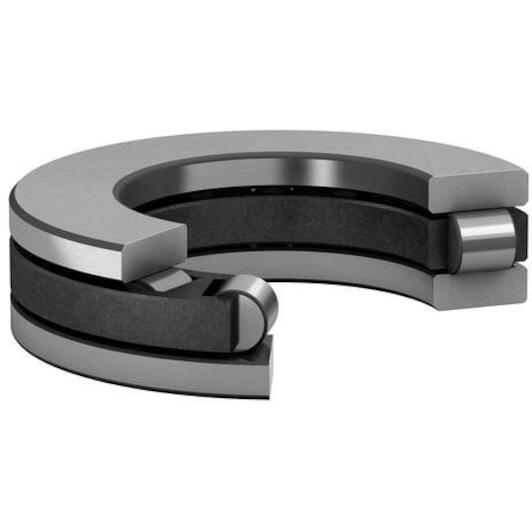

With the Skf 81210 tn single row cylindrical roller thrust bearing, you effortlessly handle heavy single-direction axial and peak thrust loads. Featuring durable cylindrical rollers and a lightweight polymer cage, this assembly delivers outstanding rigidity within a compact axial height of only 22 mm. The separable design allows you to assemble, mount, or interchange the bearing washers and roller cage assembly individually with ease. Measuring 50 mm on the inside diameter and 78 mm on the outside diameter, this single-direction bearing integrates seamlessly into heavy machinery and industrial gearboxes to eliminate unwanted axial displacement and reduce wear.

Product information FAQ

€135.40

In stock - tax incl.

Key features according to our expert

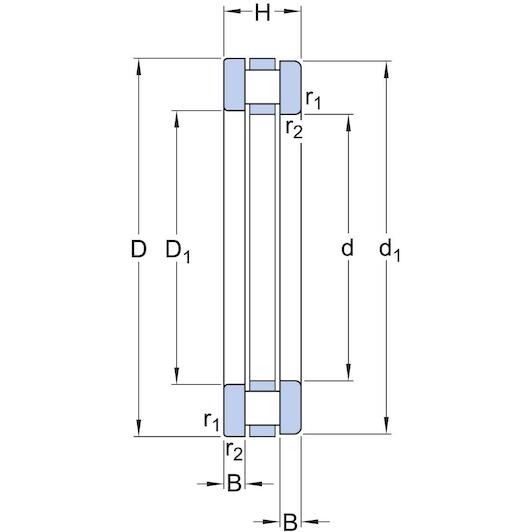

Inner diameter: 50 mm
Width: 22 mm
Number of rows: 1
Material (cage): Plastic
Outer diameter: 78 mm

Product description

Single row cylindrical roller thrust bearings are designed to accommodate heavy axial loads and peak loads in one direction, but not radial loads. They provide a high degree of stiffness and require little axial space. They are mainly used in applications where thrust ball bearings do not have sufficient load carrying capacity. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

High axial load carrying capacity
High stiffness
Long service life
Require little axial space
Separable design

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 50 mm
Width: 22 mm
Number of rows: 1
Material (cage): Plastic
Outer diameter: 78 mm
Bore diameter: 50
Cage: Non-metallic
Reference speed: 1700
Basic static load rating: 300
Tolerance class: Normal
Bearing part: Complete bearing
Limiting speed: 3400
Axial load capability: Single-direction
Coating: Without
Basic dynamic load rating: 91.5
Height: 22
Outside diameter: 78
Material, bearing: Bearing steel

Brand SKF
01295390
EAN 7316570590517
Supplier number SKF 81210 TN

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this cylindrical roller thrust bearing?: This bearing has an inside diameter of 50 mm, an outside diameter of 78 mm, and a width of 22 mm.
What types of loads can the SKF 81210 TN handle?: It is designed for heavy axial loads in a single direction. It does not support radial loads.
What material is the cage made from?: The cage of this specific bearing is made from polyamide (plastic).
Is this a complete thrust bearing?: Yes, this is a complete single row, single direction cylindrical roller thrust bearing.
Is this bearing separable for mounting?: Yes, it has a separable design, allowing the washers and roller cage assembly to be mounted individually.
