SKF 81118 TN single-row cylindrical roller bearing single acting 90 x 120 mm

Supplier number: SKF 81118 TN | EAN 7316570894028
Recommended Retail Price €485.98
240.60 tax incl.
€198.84 excl. VAT (incl. all environmental contributions)
On order: delivered from 09/10/2026

  • Delivery by DHL


€240.60
tax incl.

Product information

Key features according to our expert

  • Inner diameter: 90 mm
  • Width: 22 mm
  • Number of rows: 1
  • Material (cage): Plastic
  • Outer diameter: 120 mm

Product description

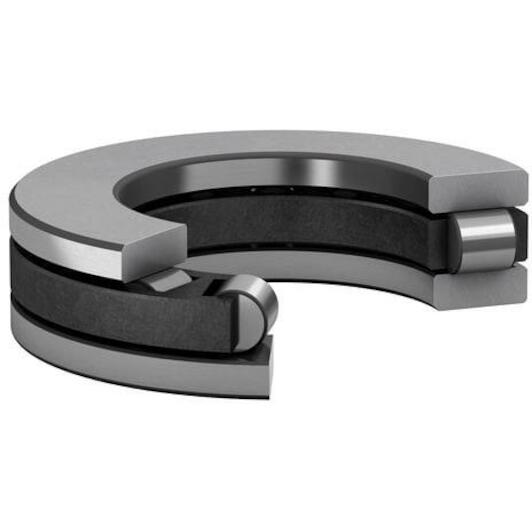

Single row cylindrical roller thrust bearings are designed to accommodate heavy axial loads and peak loads in one direction, but not radial loads. They provide a high degree of stiffness and require little axial space. They are mainly used in applications where thrust ball bearings do not have sufficient load carrying capacity. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

  • High axial load carrying capacity
  • High stiffness
  • Long service life
  • Require little axial space
  • Separable design

Documents

All Features

Inner diameter
90 mm
Width
22 mm
Number of rows
1
Material (cage)
Plastic
Outer diameter
120 mm
Bore diameter
90
Cage
Non-metallic
Reference speed
1300
Basic static load rating
450
Tolerance class
Normal
Bearing part
Complete bearing
Limiting speed
2600
Axial load capability
Single-direction
Coating
Without
Basic dynamic load rating
110
Height
22
Outside diameter
120
Material, bearing
Bearing steel
  • Brand SKF
  • EAN 7316570894028
  • Supplier number SKF 81118 TN
