SKF 81108 TN single-row cylindrical roller bearing single acting 40 x 60 mm

SKF
Supplier number: SKF 81108 TN | EAN 7316577732880
Recommended Retail Price €143.55
70.95 tax incl.
€58.64 excl. VAT (incl. all environmental contributions)
On order: delivered from 10/10/2026

  • Delivery by DHL
↓ Documents (1) ✆ Talk to a specialist


Product information
€70.95
tax incl.

Product information

Key features according to our expert

  • Inner diameter: 40 mm
  • Width: 13 mm
  • Number of rows: 1
  • Material (cage): Plastic
  • Outer diameter: 60 mm

Product description

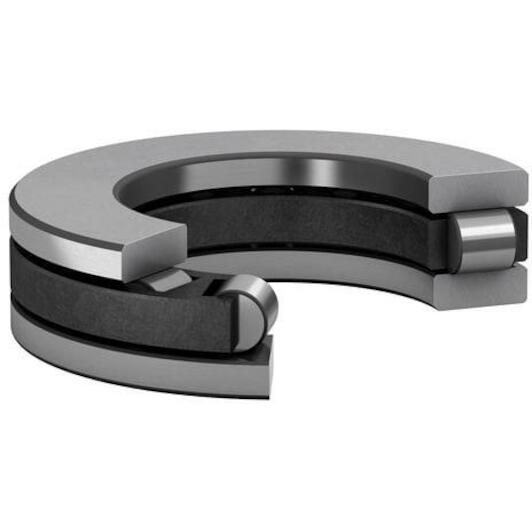

Single row cylindrical roller thrust bearings are designed to accommodate heavy axial loads and peak loads in one direction, but not radial loads. They provide a high degree of stiffness and require little axial space. They are mainly used in applications where thrust ball bearings do not have sufficient load carrying capacity. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

  • High axial load carrying capacity
  • High stiffness
  • Long service life
  • Require little axial space
  • Separable design

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter
40 mm
Width
13 mm
Number of rows
1
Material (cage)
Plastic
Outer diameter
60 mm
Bore diameter
40
Cage
Non-metallic
Reference speed
2400
Basic static load rating
137
Tolerance class
Normal
Bearing part
Complete bearing
Limiting speed
5000
Axial load capability
Single-direction
Coating
Without
Basic dynamic load rating
43
Height
13
Outside diameter
60
Material, bearing
Bearing steel
  • Brand SKF
  • EAN 7316577732880
  • Supplier number SKF 81108 TN
