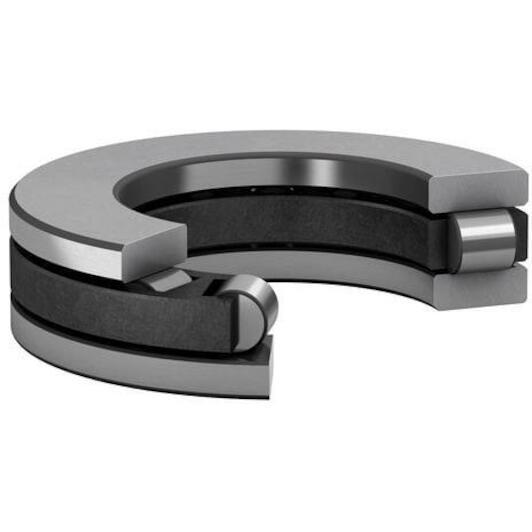

SKF 81104 TN single-row cylindrical roller bearing single acting 20 x 35 mm

Supplier number: SKF 81104 TN | EAN 7316570427967

Recommended Retail Price €99.84

49.40 tax incl.

€40.83 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Dependable axial support in compact machinery

Practical benefits

High axial load stiffness: You handle heavy single-direction axial forces easily thanks to the rigid cylindrical roller arrangement.
Compact and lightweight design: The polymer cage of the 81104 TN enables smooth rotation within a minimal 10 mm axial space.
Simple and fast assembly: Separable bearing parts allow you to mount and align the components swiftly during installation or maintenance.

In a nutshell

The right choise for

With the Skf 81104 tn single row cylindrical roller thrust bearing, you effortlessly accommodate heavy single-direction axial forces and peak loads. Featuring a 20 mm bore and 35 mm outside diameter, this single-direction thrust bearing delivers high rigidity in rotating shafts, gearboxes, and drive units. The glass-fiber reinforced polyamide cage ensures smooth rotation within an ultra-compact 10 mm axial height, offering greater load capacity than conventional thrust ball bearings. Thanks to its separable design with interchangeable shaft and housing washers and roller assembly, you complete installation and maintenance quickly and accurately.

Product information FAQ

€49.40

In stock - tax incl.

Key features according to our expert

Inner diameter: 20 mm
Width: 10 mm
Number of rows: 1
Material (cage): Plastic
Outer diameter: 35 mm

Product description

Single row cylindrical roller thrust bearings are designed to accommodate heavy axial loads and peak loads in one direction, but not radial loads. They provide a high degree of stiffness and require little axial space. They are mainly used in applications where thrust ball bearings do not have sufficient load carrying capacity. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

High axial load carrying capacity
High stiffness
Long service life
Require little axial space
Separable design

Documents

⤓ Technical data sheet PDF

All Features

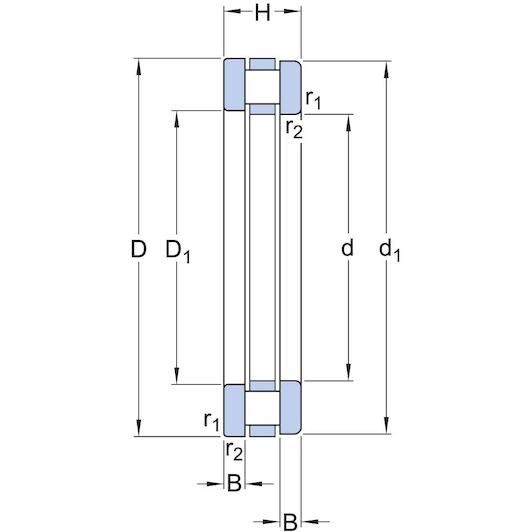

Inner diameter: 20 mm
Width: 10 mm
Number of rows: 1
Material (cage): Plastic
Outer diameter: 35 mm
Bore diameter: 20
Cage: Non-metallic
Reference speed: 3800
Basic static load rating: 48
Tolerance class: Normal
Bearing part: Complete bearing
Limiting speed: 7500
Axial load capability: Single-direction
Coating: Without
Basic dynamic load rating: 18.6
Height: 10
Outside diameter: 35
Material, bearing: Bearing steel

Brand SKF
01293413
EAN 7316570427967
Supplier number SKF 81104 TN

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this cylindrical roller thrust bearing?: The bore diameter is 20 mm, the outside diameter is 35 mm, and the width (height) is 10 mm.
What load type does the SKF 81104 TN accommodate?: It is designed for heavy axial loads in one direction and does not take radial loads.
What does the TN designation indicate?: The TN suffix indicates a glass-fiber reinforced polyamide cage.
Is this thrust bearing separable for easier mounting?: Yes, the shaft washer, housing washer, and roller assembly are separable and interchangeable.
What is the benefit over a thrust ball bearing?: It provides higher stiffness and significantly greater axial load capacity in compact spaces.
