SKF

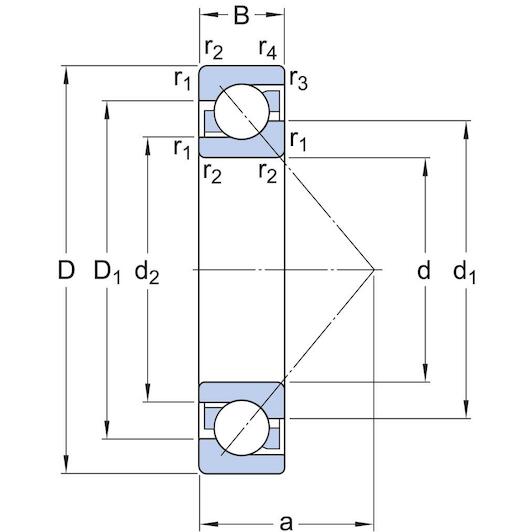

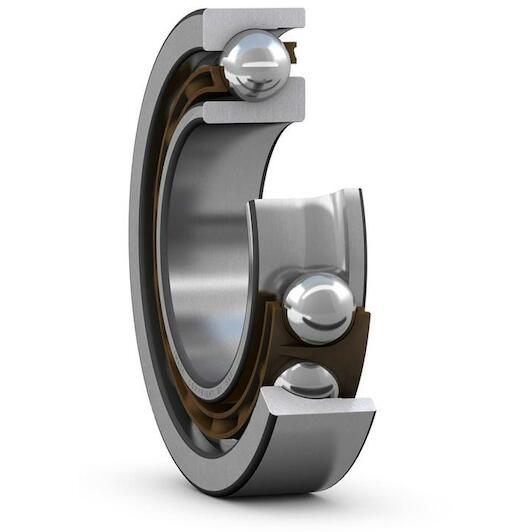

SKF 7316 BEP single-row angular contact ball bearing 80 x 170 x 39 mm with contact angle 40°

Recommended Retail Price €822.44
406.95 tax incl.
€336.32 excl. VAT (incl. all environmental contributions)
On order: delivered from 28/05/2026
each

  • Delivery by DHL

Product description

These single row angular contact ball bearings can accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They can operate at high speeds and, depending on the variant, even very high speeds. They are more suitable than deep groove ball bearings for supporting large axial forces acting in one direction.

  • High-speed capability
  • Accommodate relatively high radial loads and large unilateral axial loads
Key features according to our expert
  • Inner diameter: 80 mm
  • Width: 39 mm
  • Number of rows: 1
  • Axial clearance: Not applicable
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Material (cage): Plastic
  • Outer diameter: 170 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316577151032
  • Supplier number: SKF 7316 BEP
Inner diameter
80 mm
Width
39 mm
Number of rows
1
Axial clearance
Not applicable
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Material (cage)
Plastic
Outer diameter
170 mm
Basic static load rating
110
Ring type
One-piece inner and outer rings
Tolerance class
Normal
Contact type
Normal contact (two-point contact)
Lubricant
None
Matched arrangement
No
Relubrication feature
Without
Reference speed
5000
Sealing
Without
Cage
Non-metallic
Material, bearing
Bearing steel
Locating feature, bearing outer ring
None
Axial internal clearance
Not applicable
Contact angle
40
Limiting speed
4500
Bore diameter
80
Basic dynamic load rating
135
Coating
Without
Outside diameter
170
Universal matching bearing
No
