What are the dimensions of this SKF ball bearing?

The bearing has a 70 mm bore diameter, a 150 mm outside diameter, and a width of 35 mm.

What loads can this angular contact bearing accommodate?

It accommodates combined radial loads and high axial loads acting in one direction.

What material is the bearing cage made of?

The bearing features a glass-fibre reinforced polyamide (plastic) cage.

What is the purpose of the 40° contact angle?

The 40° contact angle allows the bearing to support high axial forces in one direction.

Is this SKF bearing sealed?

No, this is an open bearing without integrated seals.

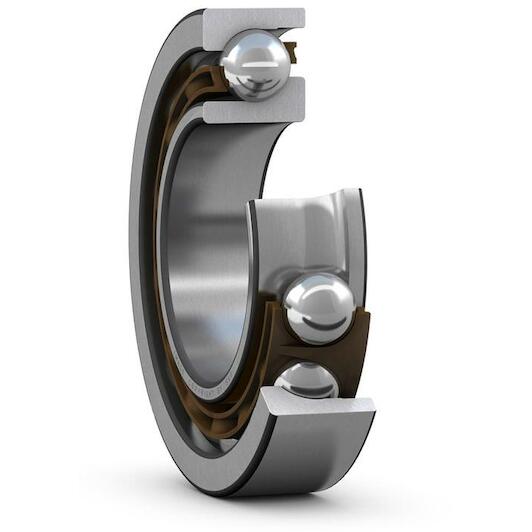

SKF 7314 BECBP single-row angular contact ball bearing 70 x 150 x 35 mm with contact angle 40°

Supplier number: SKF 7314 BECBP | EAN 7316576634529

Recommended Retail Price €653.84

323.60 tax incl.

€267.44 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 4 products in stock.

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

High load capacity with Skf

Practical benefits

Heavy combined load support: Built with a 40° contact angle, you reliably accommodate simultaneous radial forces and heavy unilateral axial loads.
Low friction high speeds: The lightweight polymer cage minimizes operational friction, allowing you to run smoothly at high rotational speeds.
Long lasting industrial durability: High quality bearing steel construction ensures you achieve dependable performance and extended service life under heavy operation.

In a nutshell

The right choise for

With the Skf 7314 becbp single row angular contact ball bearing, you reliably handle heavy radial forces and high unilateral axial loads in demanding industrial machinery. Featuring a 40° contact angle, it maintains precise shaft alignment and rigidity across pumps, compressors, gearboxes, and machine spindles. The lightweight polyamide cage significantly reduces friction, allowing you to run smoothly and quietly at high rotational speeds. Built from durable bearing steel with dimensions of 70 x 150 x 35 mm, this open bearing prevents premature wear and delivers dependable performance under heavy operation.

Product information FAQ

€323.60

In stock - tax incl.

Key features according to our expert

Inner diameter: 70 mm
Width: 35 mm
Number of rows: 1
Axial clearance: Not applicable
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Material (cage): Plastic
Outer diameter: 150 mm

Product description

These single row angular contact ball bearings can accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They can operate at high speeds and, depending on the variant, even very high speeds. They are more suitable than deep groove ball bearings for supporting large axial forces acting in one direction.

High-speed capability
Accommodate relatively high radial loads and large unilateral axial loads

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 70 mm
Width: 35 mm
Number of rows: 1
Axial clearance: Not applicable
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Material (cage): Plastic
Outer diameter: 150 mm
Matched arrangement: No
Ring type: One-piece inner and outer rings
Tolerance class: Class P6 (P6)
Contact type: Normal contact (two-point contact)
Basic static load rating: 98
Lubricant: None
Relubrication feature: Without
Reference speed: 5600
Skf performance class: SKF Explorer
Sealing: Without
Cage: Non-metallic
Material, bearing: Bearing steel
Locating feature, bearing outer ring: None
Bore diameter: 70
Axial internal clearance: Not applicable
Contact angle: 40
Limiting speed: 5600
Matched condition (axial clearance/ preload): Axial clearance CB
Basic dynamic load rating: 127
Coating: Without
Outer diameter: 150
Universal matching bearing: Yes

Brand SKF
01050458
EAN 7316576634529
Supplier number SKF 7314 BECBP

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF ball bearing?: The bearing has a 70 mm bore diameter, a 150 mm outside diameter, and a width of 35 mm.
What loads can this angular contact bearing accommodate?: It accommodates combined radial loads and high axial loads acting in one direction.
What material is the bearing cage made of?: The bearing features a glass-fibre reinforced polyamide (plastic) cage.
What is the purpose of the 40° contact angle?: The 40° contact angle allows the bearing to support high axial forces in one direction.
Is this SKF bearing sealed?: No, this is an open bearing without integrated seals.
