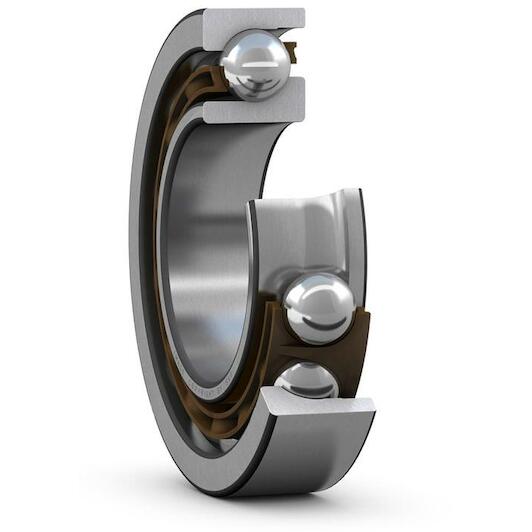

SKF 7217 BECBP single-row angular contact ball bearing 85 x 150 x 28 mm with contact angle 40°

Supplier number: SKF 7217 BECBP | EAN 7316576633638
Recommended Retail Price €652.44
322.95 tax incl.
€266.90 excl. VAT (incl. all environmental contributions)
On order: delivered from 29/10/2026

  • Delivery by DHL


€322.95
tax incl.

Product information

Key features according to our expert

  • Inner diameter: 85 mm
  • Width: 28 mm
  • Number of rows: 1
  • Axial clearance: Not applicable
  • Sealing (bearing): Without seals
  • Material (bearing seal): Not applicable
  • Material (cage): Plastic
  • Outer diameter: 150 mm

Product description

These single row angular contact ball bearings can accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They can operate at high speeds and, depending on the variant, even very high speeds. They are more suitable than deep groove ball bearings for supporting large axial forces acting in one direction.

  • High-speed capability
  • Accommodate relatively high radial loads and large unilateral axial loads

Documents

All Features

Inner diameter
85 mm
Width
28 mm
Number of rows
1
Axial clearance
Not applicable
Sealing (bearing)
Without seals
Material (bearing seal)
Not applicable
Material (cage)
Plastic
Outer diameter
150 mm
Matched arrangement
No
Ring type
One-piece inner and outer rings
Tolerance class
Class P6 (P6)
Contact type
Normal contact (two-point contact)
Basic static load rating
90
Lubricant
None
Relubrication feature
Without
Reference speed
5300
Skf performance class
SKF Explorer
Sealing
Without
Cage
Non-metallic
Material, bearing
Bearing steel
Locating feature, bearing outer ring
None
Bore diameter
85
Axial internal clearance
Not applicable
Contact angle
40
Limiting speed
5300
Matched condition (axial clearance/ preload)
Axial clearance CB
Basic dynamic load rating
102
Coating
Without
Outer diameter
150
Universal matching bearing
Yes
  • Brand SKF
  • EAN 7316576633638
  • Supplier number SKF 7217 BECBP
