What are the dimensions of this bearing?

This bearing has a 75 mm bore diameter, a 130 mm outside diameter, and a width of 25 mm.

What loads can this angular contact ball bearing handle?

It accommodates combined radial loads and heavy axial loads in a single direction via its 40° contact angle.

What material is the cage made of?

The cage is made of machined solid brass, indicated by the M suffix in the product code.

Is this SKF bearing sealed?

No, this is an open bearing without seals or pre-applied grease, allowing you to use your chosen lubricant.

Can this bearing be installed in matched sets?

Yes, with its CB design, it is suitable for universal matching in back-to-back, face-to-face, or tandem arrangements.

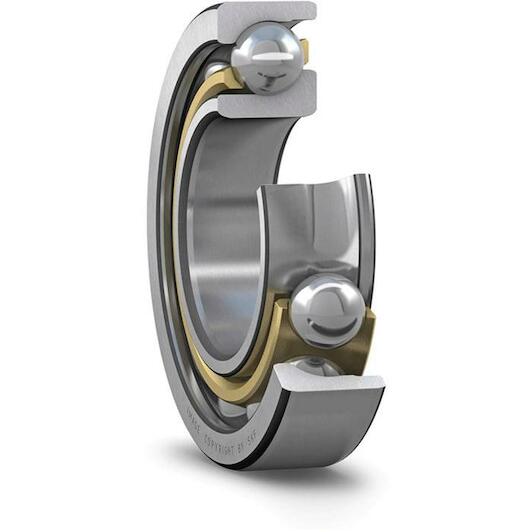

SKF 7215 BECBM single-row angular contact ball bearing 75 x 130 x 25 mm with contact angle 40°

Supplier number: SKF 7215 BECBM | EAN 7316576633560

Recommended Retail Price €719.32

355.95 tax incl.

€294.17 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Reliable power transmission with Skf

Practical benefits

High combined load capacity: With a 40° contact angle, you efficiently accommodate simultaneous heavy radial loads and strong unilateral axial forces.
Solid machined brass cage: The machined brass cage gives you superior guidance, minimal friction, and exceptional durability at high operating speeds.
Effortless universal mounting: Built with precise internal clearance, you mount the unit seamlessly into gearboxes and pumps without complex adjustments.

In a nutshell

The right choise for

With the Skf 7215 becbm single row angular contact ball bearing, you ensure dependable power transmission and stability in demanding rotating machinery. Thanks to its 40° contact angle, you efficiently accommodate simultaneous heavy radial loads and strong unidirectional axial forces. The solid machined brass cage delivers precise guidance, minimal friction, and superior durability against vibrations during high-speed operations. Featuring dimensions of 75 x 130 x 25 mm and a universally matched open design, you integrate this bearing effortlessly into industrial pumps, gearboxes, and compressors without complex clearance adjustments. It is the practical choice to maintain accurate shaft alignment and long-term equipment reliability.

Product information FAQ

€355.95

In stock - tax incl.

Key features according to our expert

Inner diameter: 75 mm
Width: 25 mm
Number of rows: 1
Axial clearance: Not applicable
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Material (cage): Brass (solid)
Outer diameter: 130 mm

Product description

These single row angular contact ball bearings can accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They can operate at high speeds and, depending on the variant, even very high speeds. They are more suitable than deep groove ball bearings for supporting large axial forces acting in one direction.

High-speed capability
Accommodate relatively high radial loads and large unilateral axial loads

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 75 mm
Width: 25 mm
Number of rows: 1
Axial clearance: Not applicable
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Material (cage): Brass (solid)
Outer diameter: 130 mm
Matched arrangement: No
Ring type: One-piece inner and outer rings
Tolerance class: Class P6 (P6)
Contact type: Normal contact (two-point contact)
Basic static load rating: 65.5
Lubricant: None
Relubrication feature: Without
Reference speed: 6300
Skf performance class: SKF Explorer
Sealing: Without
Cage: Machined brass
Material, bearing: Bearing steel
Locating feature, bearing outer ring: None
Bore diameter: 75
Axial internal clearance: Not applicable
Contact angle: 40
Limiting speed: 8000
Matched condition (axial clearance/ preload): Axial clearance CB
Basic dynamic load rating: 73.5
Coating: Without
Outer diameter: 130
Universal matching bearing: Yes

Brand SKF
01050639
EAN 7316576633560
Supplier number SKF 7215 BECBM

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this bearing?: This bearing has a 75 mm bore diameter, a 130 mm outside diameter, and a width of 25 mm.
What loads can this angular contact ball bearing handle?: It accommodates combined radial loads and heavy axial loads in a single direction via its 40° contact angle.
What material is the cage made of?: The cage is made of machined solid brass, indicated by the M suffix in the product code.
Is this SKF bearing sealed?: No, this is an open bearing without seals or pre-applied grease, allowing you to use your chosen lubricant.
Can this bearing be installed in matched sets?: Yes, with its CB design, it is suitable for universal matching in back-to-back, face-to-face, or tandem arrangements.
