skf_7214bem1vq335
SKF

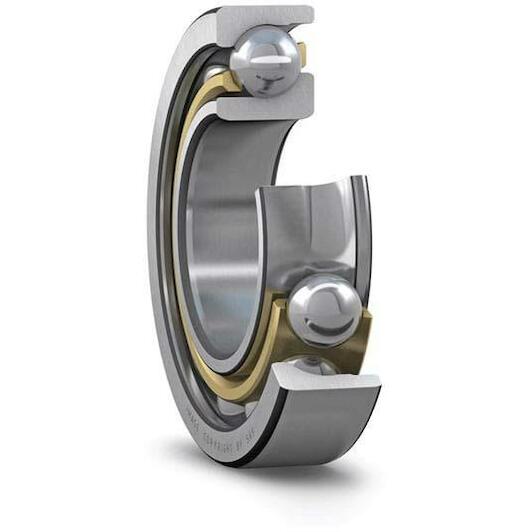

SKF 7214 BEM1/VQ335 single-row angular contact ball bearing 70 mm

Recommended Retail Price €708.89
350.80 tax incl.
€289.92 excl. VAT (incl. all environmental contributions)
On order: delivered from 02/06/2026
each

  • Delivery by DHL

Product description

These single row angular contact ball bearings can accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They can operate at high speeds and, depending on the variant, even very high speeds. They are more suitable than deep groove ball bearings for supporting large axial forces acting in one direction.

  • High-speed capability
  • Accommodate relatively high radial loads and large unilateral axial loads
Key features according to our expert
  • Inner diameter: 70 mm
  • Width: 24 mm
  • Number of rows: 1
  • Axial clearance: Not applicable
  • Seal (bearing): Without seal
  • Outer diameter: 125 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316570070033
  • Supplier number: SKF 7214 BEM1/VQ335
Inner diameter
70 mm
Width
24 mm
Number of rows
1
Axial clearance
Not applicable
Seal (bearing)
Without seal
Outer diameter
125 mm
Basic static load rating
56
Ring type
One-piece inner and outer rings
Tolerance class
Normal
Contact type
Normal contact (two-point contact)
Reference speed
6300
Matched arrangement
No
Relubrication feature
Without
Sealing
Without
Lubricant
None
Cage
Machined brass
Locating feature, bearing outer ring
None
Contact angle
40
Limiting speed
6300
Bore diameter
70
Basic dynamic load rating
67.6
Coating
Without
Outside diameter
125
Material, bearing
Bearing steel
