What are the dimensions of this angular contact ball bearing?

The bore diameter is 55 mm, the outer diameter is 100 mm, and the width is 21 mm.

What types of loads can the SKF 7211 BECBP handle?

It accommodates combined radial and axial loads, with axial loads acting in one direction only.

What is the contact angle of this bearing?

This bearing has a 40° contact angle.

What material is used for the cage?

The cage of this bearing is made of polyamide (plastic).

Does this SKF ball bearing have built-in seals?

No, this is an open bearing without seals.

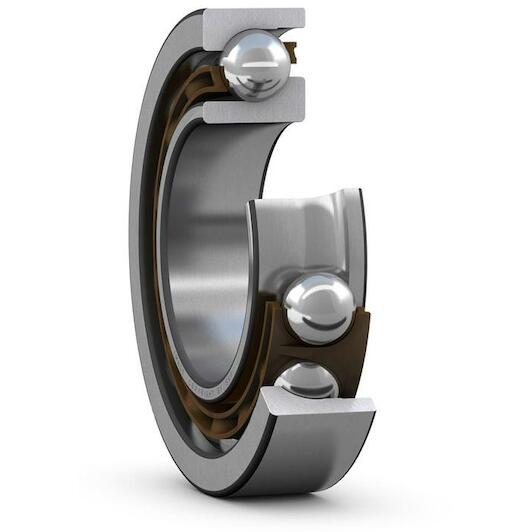

SKF 7211 BECBP single-row angular contact ball bearing 55 x 100 x 21 mm with contact angle 40°

Supplier number: SKF 7211 BECBP | EAN 7316577149756

Recommended Retail Price €273.53

135.40 tax incl.

€111.90 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Reliable efficiency with Skf

Practical benefits

Handles high combined loads: The 40° contact angle lets you support heavy radial forces and large unilateral axial loads simultaneously.
Smooth high speed operation: The lightweight polymer cage reduces internal friction, allowing you to run machines smoothly at high rotational speeds.
Precise and direct fitment: Standard dimensions of 55 x 100 x 21 mm ensure you achieve an accurate fit in existing industrial assemblies.

In a nutshell

The right choise for

With the Skf 7211 becbp single row angular contact ball bearing, you easily manage heavy combined loads in industrial drives, pumps, and gearboxes. Thanks to its 40° contact angle, this bearing reliably supports simultaneous radial forces and substantial unilateral axial loads. The lightweight polyamide cage minimizes friction and heat generation, ensuring smooth operation at high rotational speeds. Featuring dimensions of 55 x 100 x 21 mm and an open design without seals, it integrates accurately into externally lubricated assemblies, either as a single unit or in paired arrangements.

Product information FAQ

€135.40

In stock - tax incl.

Key features according to our expert

Inner diameter: 55 mm
Width: 21 mm
Number of rows: 1
Axial clearance: Not applicable
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Material (cage): Plastic
Outer diameter: 100 mm

Product description

These single row angular contact ball bearings can accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They can operate at high speeds and, depending on the variant, even very high speeds. They are more suitable than deep groove ball bearings for supporting large axial forces acting in one direction.

High-speed capability
Accommodate relatively high radial loads and large unilateral axial loads

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 55 mm
Width: 21 mm
Number of rows: 1
Axial clearance: Not applicable
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Material (cage): Plastic
Outer diameter: 100 mm
Matched arrangement: No
Ring type: One-piece inner and outer rings
Tolerance class: Class P6 (P6)
Contact type: Normal contact (two-point contact)
Basic static load rating: 40
Lubricant: None
Relubrication feature: Without
Reference speed: 8000
Skf performance class: SKF Explorer
Sealing: Without
Cage: Non-metallic
Material, bearing: Bearing steel
Locating feature, bearing outer ring: None
Bore diameter: 55
Axial internal clearance: Not applicable
Contact angle: 40
Limiting speed: 8000
Matched condition (axial clearance/ preload): Axial clearance CB
Basic dynamic load rating: 49
Coating: Without
Outer diameter: 100
Universal matching bearing: Yes

Brand SKF
01050468
EAN 7316577149756
Supplier number SKF 7211 BECBP

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this angular contact ball bearing?: The bore diameter is 55 mm, the outer diameter is 100 mm, and the width is 21 mm.
What types of loads can the SKF 7211 BECBP handle?: It accommodates combined radial and axial loads, with axial loads acting in one direction only.
What is the contact angle of this bearing?: This bearing has a 40° contact angle.
What material is used for the cage?: The cage of this bearing is made of polyamide (plastic).
Does this SKF ball bearing have built-in seals?: No, this is an open bearing without seals.
