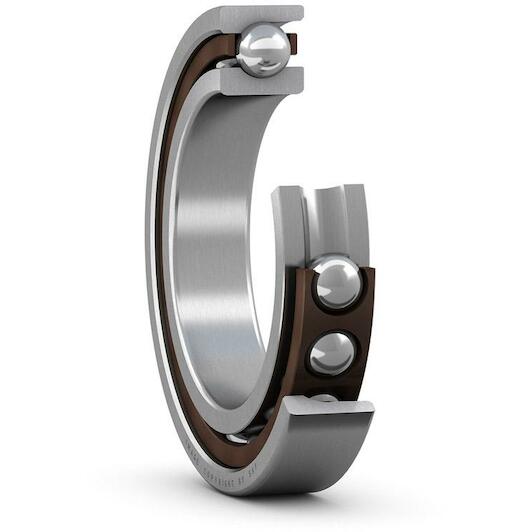

SKF 709 CDGA/P4A single-row super-precision angular contact ball bearing 9 x 24 x 7 mm with contact angle 15°

Supplier number: SKF 709 CDGA/P4A | EAN 7316570486803

Recommended Retail Price €426.15

210.80 tax incl.

€174.21 excl. VAT (incl. all environmental contributions)

On order: delivered from 27/10/2026

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Product information

€210.80

tax incl.

Key features according to our expert

Inner diameter: 9 mm
Width: 7 mm
Number of rows: 1
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Outer diameter: 24 mm

Product description

These super-precision, high-capacity, single row angular contact ball bearings accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They are designed to accommodate heavy loads at relatively high speeds under low to moderate operating temperatures. Being universally matchable, they can be used together in arrangements to provide effective load sharing, within a predetermined preload range, without the use of shims or similar devices.

Very high running accuracy
Very high load carrying capacity
Relatively high speed and stiffness
Universally matchable

Documents

⤓ Technical data sheet PDF

All Features

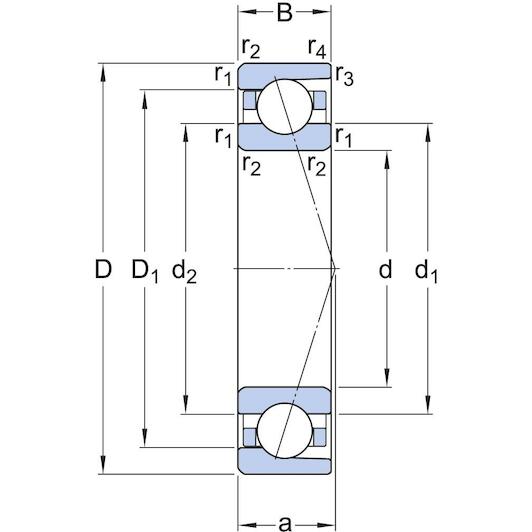

Inner diameter: 9 mm
Width: 7 mm
Number of rows: 1
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Outer diameter: 24 mm
Matched arrangement: No
Tolerance class: P4A
Contact type: Normal contact (two-point contact)
Basic static load rating: 1.6
Cage: Non-metallic
Lubricant: None
Design: High-capacity D
Sealing: Without
Material, bearing: Bearing steel

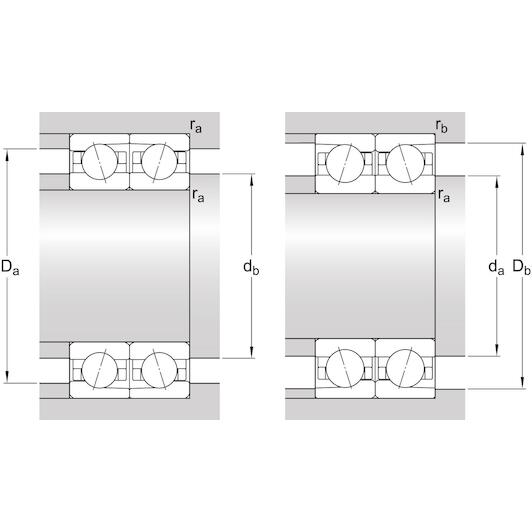

Universal matching bearing: Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
Ring type: One-piece inner and outer rings
Contact angle: 15
Matched condition (axial clearance/ preload): Measuring load, class A
Bore diameter: 9
Basic dynamic load rating: 3.58
Coating: Without
Outer diameter: 24
Note: Refer to catalogue data or contact SKF for the attainable speeds
