What are the dimensions of this SKF angular contact ball bearing?

The bearing has a 35 mm bore diameter, a 62 mm outer diameter, and a 14 mm width.

What does universally matchable (GA) mean?

It allows you to mount bearings directly back-to-back, face-to-face, or in tandem with light preload without shims.

What is the contact angle of this precision bearing?

It features a 15° contact angle, providing high rigidity and performance at high speeds under combined loads.

Is this bearing sealed?

No, this is an open bearing without seals and requires external lubrication.

What type of loads can this single-row bearing support?

It accommodates simultaneous radial loads and axial loads acting in one direction only.

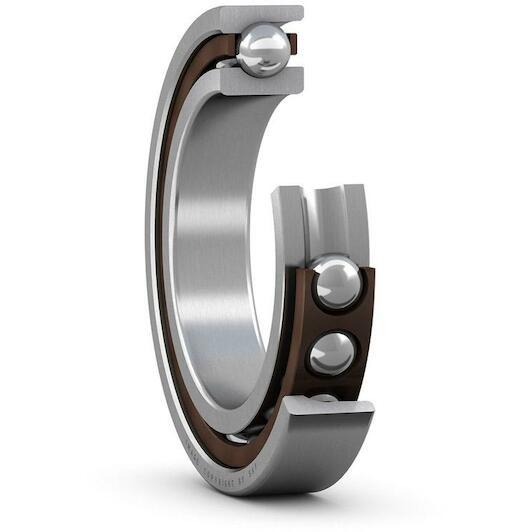

SKF 7007 CDGA/P4A single-row super-precision angular contact ball bearing 35 x 62 x 14 mm with contact angle 15°

Supplier number: SKF 7007 CDGA/P4A | EAN 7316570165050

Recommended Retail Price €514.36

254.60 tax incl.

€210.41 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 3 products in stock.

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Maximum precision with 7007 CDGA/P4A

Practical benefits

High combined load capacity: You reliably accommodate simultaneous radial and single-direction axial forces thanks to the optimized 15° contact angle.

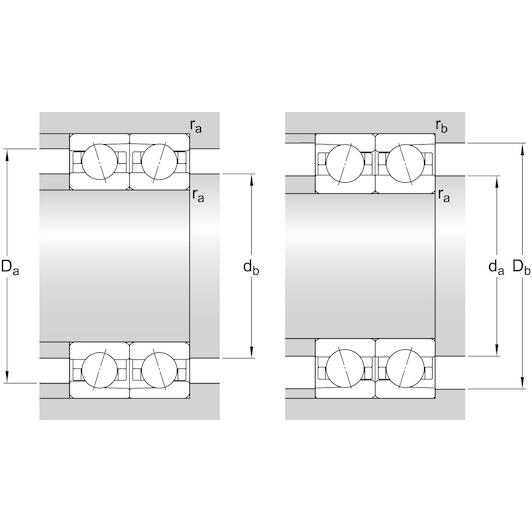

Seamless universal matching: You easily mount bearings in tandem, back-to-back, or face-to-face sets with precise preloading and no extra shims.
Exceptional high-speed running accuracy: Manufactured to P4A tolerance standards, you achieve rigid shaft guidance and smooth performance even at extreme speeds.

In a nutshell

The right choise for

With the Skf 7007 CDGA/P4A angular contact ball bearing, you ensure superior running accuracy and rigid spindle guidance in demanding high-speed machinery. Featuring an optimized 15° contact angle, it reliably supports combined radial forces and heavy single-direction axial loads. The P4A tolerance standard delivers smooth performance while minimizing friction and heat generation during continuous high-speed rotation. Thanks to universal ga matching, you can mount multiple bearings directly in back-to-back, face-to-face, or tandem arrangements with a light preload, eliminating the need for custom shims. This open 35 x 62 x 14 mm super-precision bearing gives you complete control and long-term reliability for your precision tooling setups.

Product information FAQ

€254.60

In stock - tax incl.

Key features according to our expert

Inner diameter: 35 mm
Width: 14 mm
Number of rows: 1
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Outer diameter: 62 mm

Product description

These super-precision, high-capacity, single row angular contact ball bearings accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They are designed to accommodate heavy loads at relatively high speeds under low to moderate operating temperatures. Being universally matchable, they can be used together in arrangements to provide effective load sharing, within a predetermined preload range, without the use of shims or similar devices.

Very high running accuracy
Very high load carrying capacity
Relatively high speed and stiffness
Universally matchable

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 35 mm
Width: 14 mm
Number of rows: 1
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Outer diameter: 62 mm
Matched arrangement: No
Tolerance class: P4A
Contact type: Normal contact (two-point contact)
Basic static load rating: 9.5
Cage: Non-metallic
Lubricant: None
Design: High-capacity D
Sealing: Without
Material, bearing: Bearing steel
Universal matching bearing: Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
Ring type: One-piece inner and outer rings
Contact angle: 15
Matched condition (axial clearance/ preload): Measuring load, class A
Bore diameter: 35
Basic dynamic load rating: 15.6
Coating: Without
Outer diameter: 62
Note: Refer to catalogue data or contact SKF for the attainable speeds

Brand SKF
01050775
EAN 7316570165050
Supplier number SKF 7007 CDGA/P4A

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF angular contact ball bearing?: The bearing has a 35 mm bore diameter, a 62 mm outer diameter, and a 14 mm width.
What does universally matchable (GA) mean?: It allows you to mount bearings directly back-to-back, face-to-face, or in tandem with light preload without shims.
What is the contact angle of this precision bearing?: It features a 15° contact angle, providing high rigidity and performance at high speeds under combined loads.
Is this bearing sealed?: No, this is an open bearing without seals and requires external lubrication.
What type of loads can this single-row bearing support?: It accommodates simultaneous radial loads and axial loads acting in one direction only.
