SKF 7001 ACDGB/P4A single-row super-precision angular contact ball bearing 12 x 28 x 8 mm with contact angle 25°

Recommended Retail Price €414.12

204.95 tax incl.

€169.38 excl. VAT (incl. all environmental contributions)

SKF 7001 ACDGB/P4A single-row super-precision angular contact ball bearing 12 x 28 x 8 mm with contact angle 25°

€204.95 Recommended Retail Price €414.12

On order: delivered from 26/05/2026

each

Delivery by DHL

Product information
Additional info

Product description

These super-precision, high-capacity, single row angular contact ball bearings accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They are designed to accommodate heavy loads at relatively high speeds under low to moderate operating temperatures. Being universally matchable, they can be used together in arrangements to provide effective load sharing, within a predetermined preload range, without the use of shims or similar devices.

Very high running accuracy
Very high load carrying capacity
Relatively high speed and stiffness
Universally matchable

Key features according to our expert

Inner diameter: 12 mm
Width: 8 mm
Material (bearing seal): Not applicable
Outer diameter: 28 mm

Specifications / All features

Brand: SKF
01051230
EAN: 07316570131550
Supplier number: SKF 7001 ACDGB/P4A

Inner diameter: 12 mm
Width: 8 mm
Material (bearing seal): Not applicable
Outer diameter: 28 mm
Sealing: Without

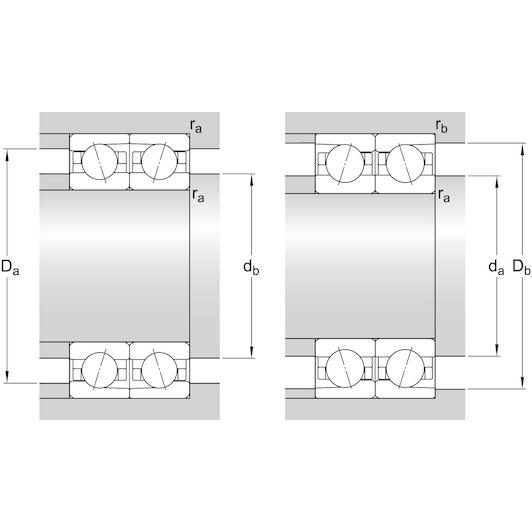

Universal matching bearing: Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
Material, bearing: Bearing steel
Cage: Non-metallic
Design: High-capacity D
Lubricant: None
Matched arrangement: No
Basic static load rating: 1.83
Contact type: Normal contact (two-point contact)
Tolerance class: P4A
Ring type: One-piece inner and outer rings
Bore diameter: 12
Contact angle: 25
Matched condition (axial clearance/ preload): Measuring load, class B
Number of rows: 1
Basic dynamic load rating: 4.36
Coating: Without
Outside diameter: 28
Note: Refer to catalogue data or contact SKF for the attainable speeds
