SKF

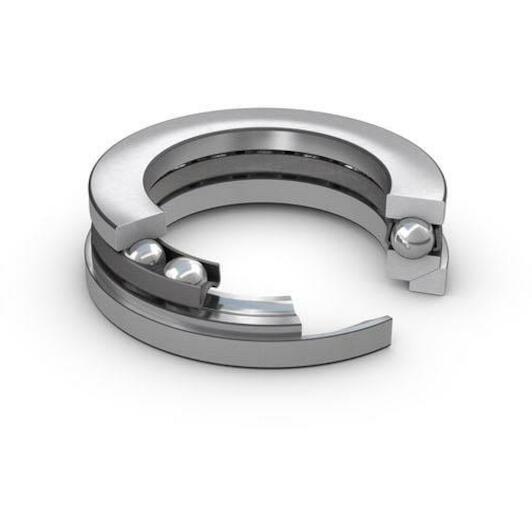

SKF 53322 M ball roller bearing single acting 110x190 mm

This article is not available

Product description:

  • Single-sided ball thrust bearings consist of a shaft ring, a housing ring and a cage with balls
  • The bearings are removable so that the ring and ball cage can easily be fitted separately
  • Single-sided spherical roller bearings, as their name suggests , can take axial loads in one direction and thus trap a shaft in one direction
  • They may not be subjected to radial loads
Key features according to our expert
  • Inner diameter: 110 mm
  • Width: 67,2 mm
  • Number of rows: 1
  • Material (cage): Brass (solid)
  • Outer diameter: 190 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316570598179
  • Supplier number: SKF 53322 M
Inner diameter
110 mm
Width
67,2 mm
Number of rows
1
Material (cage)
Brass (solid)
Outer diameter
190 mm
Bore diameter
110 mm
Material, bearing
Bearing steel
Cage
Machined metal
Housing washer type
Sphered
Reference speed
1,200 r/min
Basic static load rating
800 kN
Tolerance class
Normal
Limiting speed
1,600 r/min
Axial load capability
Single-direction
Coating
Without
Basic dynamic load rating
291 kN
Thickness
67.2 mm
Outside diameter
190 mm
Radius of aligning surface
140 mm
