SKF

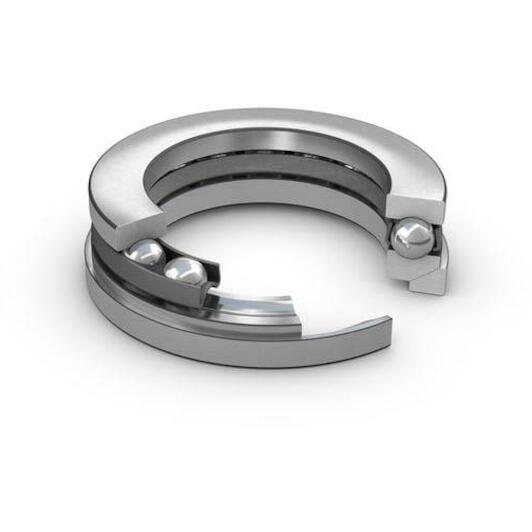

SKF 53312 ball roller bearing single acting 60x110 mm

Recommended Retail Price €588.76
291.40 tax incl.
€240.83 excl. VAT (incl. all environmental contributions)
On order: delivered from 30/05/2026
each

  • Delivery by DHL

Product description

  • Single direction thrust ball bearings, with sphered housing washer, can accommodate axial loads in one direction. They must not be subjected to any radial load. Many of the components are interchangeable. The shaft washers have a ground bore that enables an interference fit. The sphered housing washers can accommodate initial misalignment when configured correctly with a sphered seat washer or a machine component with a sphered surface.

Avantages

  • Separable design facilitates mounting/dismounting and maintenance inspections
  • Interchangeable components
  • Ground bore of shaft washers enables interference fit
  • Sphered housing washers can accommodate initial misalignment
Key features according to our expert
  • Inner diameter: 60 mm
  • Width: 38,3 mm
  • Number of rows: 1
  • Material (cage): Brass (sheet)
  • Outer diameter: 110 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316577007445
  • Supplier number: SKF 53312
Inner diameter
60 mm
Width
38,3 mm
Number of rows
1
Material (cage)
Brass (sheet)
Outer diameter
110 mm
Bore diameter
60
Material, bearing
Bearing steel
Cage
Sheet metal
Housing washer type
Sphered
Reference speed
2000
Basic static load rating
224
Tolerance class
Normal
Limiting speed
3000
Axial load capability
Single-direction
Coating
Without
Basic dynamic load rating
101
Height
38.3
Outside diameter
110
Radius of aligning surface
90
