SKF 52308 double-sided roller bearing 30x78 mm

Supplier number: SKF 52308 | EAN 7316577121301

Recommended Retail Price €395.08

195.60 tax incl.

€161.65 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Reliable bidirectional axial load support

Practical benefits

Two direction axial support: You effortlessly accommodate axial loads in both directions to maintain proper shaft positioning.
Easy assembly and maintenance: The separable components of the Skf 52308 allow you to inspect, mount, and dismount parts with ease.
Durable brass cage design: With two ball rows and a sheet brass cage, you achieve smooth running and long-lasting performance.

In a nutshell

The right choise for

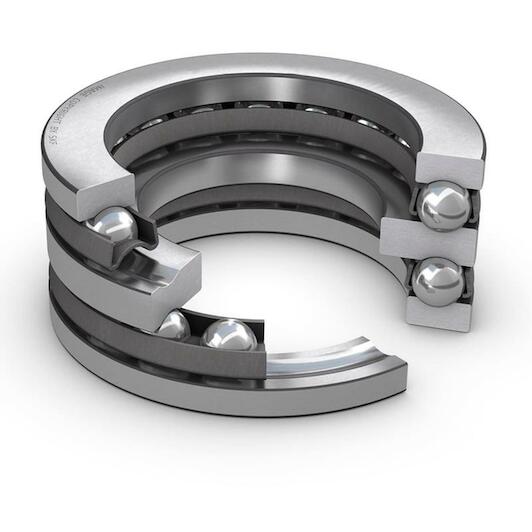

With the Skf 52308 double direction thrust ball bearing, you effortlessly accommodate axial loads in both directions. Measuring 30X78 mm with a height of 49 mm, this bearing prevents shaft play and maintains stable alignment in gearboxes, machine spindles, and drive shafts. Featuring two rows of balls and a durable sheet brass cage, it ensures smooth, low-friction operation and dependable performance under load. Its separable design makes mounting, dismounting, and maintenance inspections fast and straightforward.

Product information FAQ

€195.60

In stock - tax incl.

Key features according to our expert

Inner diameter: 30 mm
Width: 49 mm
Number of rows: 2
Material (cage): Brass (sheet)
Outer diameter: 78 mm

Product description

Double direction thrust ball bearings can accommodate axial loads in both directions, but they must not be subjected to any radial load. Their separable components facilitate mounting/dismounting and maintenance inspections, and many of the components are interchangeable. The shaft washers have a ground bore that enables an interference fit.

Avantages

Separable design facilitates mounting/dismounting and maintenance inspections
Interchangeable components
Ground bore of the shaft washers enables interference fits

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 30 mm
Width: 49 mm
Number of rows: 2
Material (cage): Brass (sheet)
Outer diameter: 78 mm
Bore diameter: 30
Cage: Sheet metal
Housing washer type: Flat
Reference speed: 2200
Basic static load rating: 122
Tolerance class: Normal
Limiting speed: 3000
Axial load capability: Double-direction
Coating: Without
Basic dynamic load rating: 61.8
Height: 49
Outside diameter: 78
Material, bearing: Bearing steel

Brand SKF
01130213
EAN 7316577121301
Supplier number SKF 52308

Frequently asked questions about this product

Answered by specialists

What loads can this bearing accommodate?: This double direction thrust ball bearing accommodates axial loads in both directions. It must not be subjected to radial loads.
What are the dimensions of the SKF 52308?: The bearing has an inside diameter of 30 mm, an outside diameter of 78 mm, and a total height of 49 mm.
Can the bearing components be separated for mounting?: Yes, the separable design makes mounting, dismounting, and maintenance inspections quick and straightforward.
Can this thrust bearing handle radial forces?: No, thrust ball bearings are engineered purely for axial loads and cannot support any radial forces.
What materials are used in this bearing?: The bearing is made from durable bearing steel and features a sheet metal cage for reliable ball retention and guidance.
