SKF

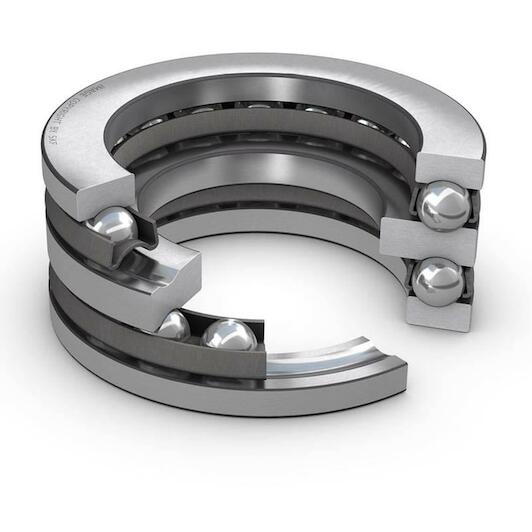

SKF 52234 M ball bearing double-sided working 150x240 mm

This article is not available

Product description:

  • Single-sided ball thrust bearings consist of a shaft ring, a housing ring and a cage with balls
  • The bearings are removable so that the ring and ball cage can easily be fitted separately
  • Single-sided spherical roller bearings, as their name suggests , can take axial loads in one direction and thus trap a shaft in one direction
  • They may not be subjected to radial loads
Key features according to our expert
  • Inner diameter: 150 mm
  • Width: 97 mm
  • Number of rows: 2
  • Material (cage): Brass (solid)
  • Outer diameter: 240 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316570514568
  • Supplier number: SKF 52234 M
Inner diameter
150 mm
Width
97 mm
Number of rows
2
Material (cage)
Brass (solid)
Outer diameter
240 mm
Bore diameter
150 mm
Cage
Machined metal
Housing washer type
Flat
Reference speed
850 r/min
Basic static load rating
980 kN
Tolerance class
Normal
Limiting speed
1,200 r/min
Axial load capability
Double-direction
Coating
Without
Basic dynamic load rating
281 kN
Thickness
97 mm
Outside diameter
240 mm
Material, bearing
Bearing steel
