SKF

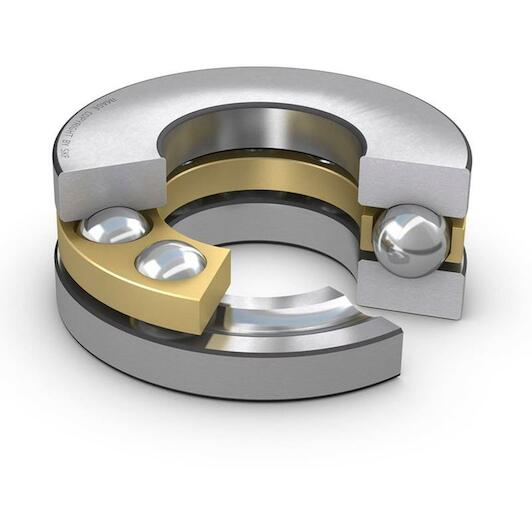

SKF 51334 M ball roller bearing single acting 170x280 mm

This article is not available

Product description:

  • Single-sided ball thrust bearings consist of a shaft ring, a housing ring and a cage with balls
  • The bearings are removable so that the ring and ball cage can easily be fitted separately
  • Single-sided spherical roller bearings, as their name suggests , can take axial loads in one direction and thus trap a shaft in one direction
  • They may not be subjected to radial loads
Key features according to our expert
  • Inner diameter: 170 mm
  • Width: 87 mm
  • Number of rows: 1
  • Material (cage): Brass (solid)
  • Outer diameter: 280 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316571068428
  • Supplier number: SKF 51334 M
Inner diameter
170 mm
Width
87 mm
Number of rows
1
Material (cage)
Brass (solid)
Outer diameter
280 mm
Bore diameter
170 mm
Cage
Machined metal
Housing washer type
Flat
Reference speed
800 r/min
Basic static load rating
1,700 kN
Tolerance class
Normal
Limiting speed
1,100 r/min
Axial load capability
Single-direction
Coating
Without
Basic dynamic load rating
449 kN
Thickness
87 mm
Outside diameter
280 mm
Material, bearing
Bearing steel
