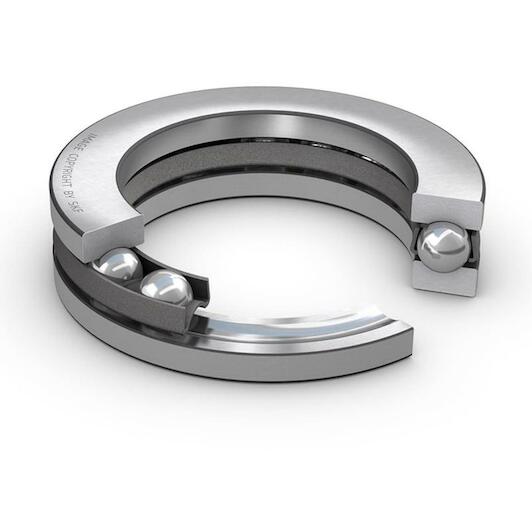

SKF 51315 ball roller bearing single acting 75x135 mm

Supplier number: SKF 51315 | EAN 7316577006936
Recommended Retail Price €710.80
351.80 tax incl.
€290.74 excl. VAT (incl. all environmental contributions)
On order: delivered from 10/10/2026

  • Delivery by DHL


€351.80
tax incl.

Product information

Key features according to our expert

  • Inner diameter: 75 mm
  • Width: 44 mm
  • Number of rows: 1
  • Material (cage): Brass (sheet)
  • Outer diameter: 135 mm

Product description

  • Single direction thrust ball bearings can accommodate axial loads in one direction. They must not be subjected to any radial load. Their separable components facilitate mounting/dismounting and maintenance inspections. Many of the components are interchangeable. The shaft washers have a ground bore that enables an interference fit.

Avantages

  • Separable design facilitates mounting/dismounting and maintenance inspections
  • Interchangeable components
  • Ground bore of shaft washers enable interference fit

Documents

All Features

Inner diameter
75 mm
Width
44 mm
Number of rows
1
Material (cage)
Brass (sheet)
Outer diameter
135 mm
Bore diameter
75
Cage
Sheet metal
Housing washer type
Flat
Reference speed
1700
Basic static load rating
390
Tolerance class
Normal
Limiting speed
2400
Axial load capability
Single-direction
Coating
Without
Basic dynamic load rating
163
Height
44
Outside diameter
135
Material, bearing
Bearing steel
  • Brand SKF
  • EAN 7316577006936
  • Supplier number SKF 51315
