SKF

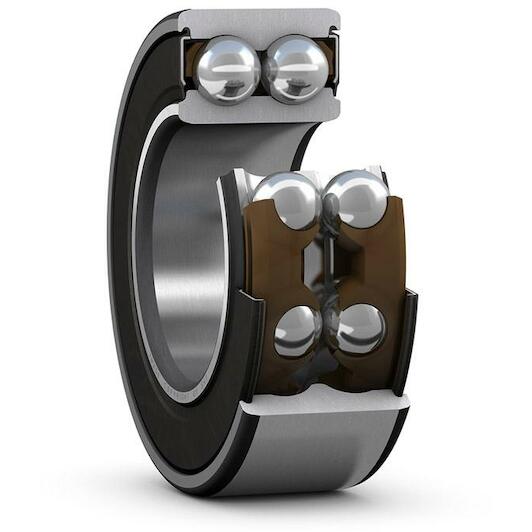

SKF 3213 A-2RS1/C3MT33 double-row angular contact ball bearing 65 x 120 x 38.1 mm with contact angle 30°

Recommended Retail Price €693.77
343.40 tax incl.
€283.80 excl. VAT (incl. all environmental contributions)
On order: delivered from 30/05/2026
each

  • Delivery by DHL

Product description

Double row angular contact ball bearings, with seals or shields, correspond to a pair of single row angular contact ball bearings in a back-to-back arrangement, while requiring less axial space. Depending on the sealing execution, they can operate at high speeds and are more suitable than deep groove ball bearings for supporting large axial forces in both directions.

  • High-speed capability
  • Accommodate relatively high radial loads, high axial loads in both directions and tilting moments
  • Suitable where a stiff bearing arrangement is required
  • Require less axial space than equivalent pair of single row angular contact ball bearings
  • Integral sealing prolongs bearing service life
Key features according to our expert
  • Inner diameter: 65 mm
  • Width: 38,1 mm
  • Number of rows: 2
  • Axial clearance: C3
  • Seal (bearing): Double-sided sealed
  • Material (bearing seal): Rubber
  • Material (cage): Brass (sheet)
  • Outer diameter: 120 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316571510712
  • Supplier number: SKF 3213 A-2RS1/C3MT33
Inner diameter
65 mm
Width
38,1 mm
Number of rows
2
Axial clearance
C3
Seal (bearing)
Double-sided sealed
Material (bearing seal)
Rubber
Material (cage)
Brass (sheet)
Outer diameter
120 mm
Basic static load rating
73.5
Locating feature, bearing outer ring
None
Ring type
One-piece inner and outer rings
Contact type
Normal contact (two-point contact)
Sealing type
Contact
Matched arrangement
No
Relubrication feature
Without
Lubricant
Grease
Arrangement of contact angle (double-row bearing)
Back-to-back (O)
Cage
Sheet metal
Material, bearing
Bearing steel
Sealing
Seal on both sides
Axial internal clearance
C3
Contact angle
30
Limiting speed
3600
Bore diameter
65
Basic dynamic load rating
80.6
Coating
Without
Outside diameter
120
Universal matching bearing
No
