What are the dimensions of this SKF spherical roller bearing?

The bearing has a 65 mm inside diameter, a 140 mm outside diameter, and a width of 48 mm.

What does the C3 designation indicate?

C3 indicates greater radial internal clearance than normal, which accommodates heavy loads and thermal expansion.

Can this bearing be relubricated?

Yes, it is equipped with relubrication features, including a lubrication groove and holes.

What type of bore does the SKF 22313 E/C3 have?

This model features a cylindrical bore for direct mounting onto a cylindrical shaft.

Does this bearing come with seals?

No, this is an open spherical roller bearing without built-in seals.

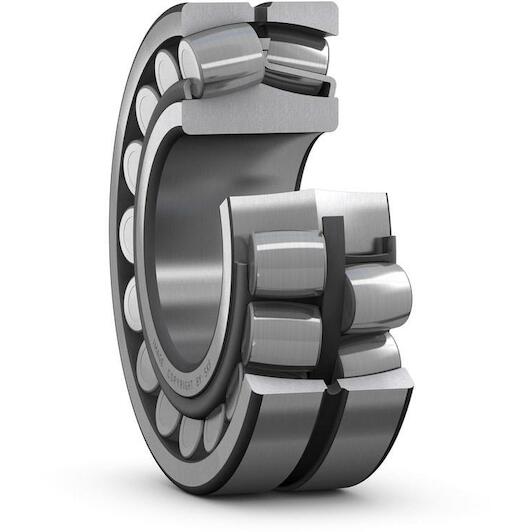

SKF 22313 E/C3 spherical roller bearing cylindrical 65 x 140 x 48 mm

Supplier number: SKF 22313 E/C3 | EAN 7316576653810

Recommended Retail Price €641.91

317.80 tax incl.

€262.64 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 3 products in stock.

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Reliable load capacity for demanding industrial machinery

Practical benefits

Heavy dual direction loads: You handle high radial and axial forces smoothly thanks to the robust double-row spherical roller design.
Simple and efficient relubrication: Integrated lubrication features let you add grease directly to reduce maintenance downtime and component wear.
Optimal clearance with Skf: The internal C3 clearance of this Skf bearing prevents binding caused by thermal expansion during heavy operation.

In a nutshell

The right choise for

Keep your heavy industrial machinery running smoothly and reliably with the Skf 22313 E/C3 double-row spherical roller bearing. Sized at 65 x 140 x 48 mm, it easily handles high radial and axial loads while accommodating shaft deflection and misalignment without edge stress. The enlarged C3 internal radial clearance prevents binding and premature seizure caused by thermal expansion during high-temperature operations. Integrated relubrication features, including lubrication holes and a groove, allow you to add lubricant easily during routine maintenance. Featuring a cylindrical bore, it mounts directly and securely onto standard shafts.

Product information FAQ

€317.80

In stock - tax incl.

Key features according to our expert

Inner diameter: 65 mm
Width: 48 mm
Number of rows: 2
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Radial clearance: C3
Material (cage): Brass (sheet)
Bore type: Cylindrical
Outer diameter: 140 mm

Product description

Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.

Accommodate misalignment
High load carrying capacity
Relubrication features
Low friction and long service life
Increased wear resistance

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 65 mm
Width: 48 mm
Number of rows: 2
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Radial clearance: C3
Material (cage): Brass (sheet)
Bore type: Cylindrical
Outer diameter: 140 mm
Reference speed: 3800
Basic static load rating: 360
Relubrication feature: With
Tolerance class for run-out: P5
Skf performance class: SKF Explorer
Lubricant: None
Cage: Sheet metal
Locating feature, bearing outer ring: Without
Radial internal clearance: C3
Basic dynamic load rating: 357
Sealing: Without
Limiting speed: 5000
Bore diameter: 65
Outer diameter: 140
Tolerance class for dimensions: Normal

Brand SKF
01090255
EAN 7316576653810
Supplier number SKF 22313 E/C3

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF spherical roller bearing?: The bearing has a 65 mm inside diameter, a 140 mm outside diameter, and a width of 48 mm.
What does the C3 designation indicate?: C3 indicates greater radial internal clearance than normal, which accommodates heavy loads and thermal expansion.
Can this bearing be relubricated?: Yes, it is equipped with relubrication features, including a lubrication groove and holes.
What type of bore does the SKF 22313 E/C3 have?: This model features a cylindrical bore for direct mounting onto a cylindrical shaft.
Does this bearing come with seals?: No, this is an open spherical roller bearing without built-in seals.
