What are the dimensions of this spherical roller bearing?

The SKF 22215 E has an inside diameter of 75 mm, an outside diameter of 130 mm, and a width of 31 mm.

What bore type and internal clearance does this bearing have?

This bearing features a cylindrical bore and normal radial internal clearance (CN).

Does this bearing come with built-in seals?

No, this is an open bearing without seals, designed for lubrication through its integrated relubrication features.

Can this bearing accommodate misalignment and heavy loads?

Yes, the double row spherical design is self-aligning and accommodates shaft deflections as well as heavy radial and axial loads.

Can the bearing be relubricated?

Yes, it features an annular groove and lubrication holes in the outer ring for easy relubrication.

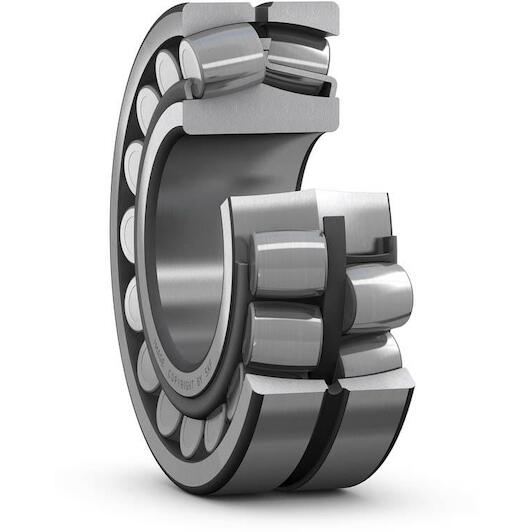

SKF 22215 E spherical roller bearing cylindrical 75 x 130 x 31 mm

Supplier number: SKF 22215 E | EAN 7316576652424

Recommended Retail Price €445.61

220.60 tax incl.

€182.31 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Heavy load capacity with the Skf 22215 E roller bearing

Practical benefits

High combined load support: You accommodate heavy radial and axial loads efficiently thanks to the robust two-row spherical roller design.
Dynamic self-aligning capability: You prevent friction and early component wear because the bearing naturally compensates for shaft deflections and misalignments.
Integrated relubrication features: You simplify routine maintenance and prolong service life by easily applying fresh grease directly into the raceway.

In a nutshell

The right choise for

Keep your heavy industrial machinery running reliably with the Skf 22215 e spherical roller bearing. Featuring a robust two-row roller design, it effortlessly handles heavy combined radial and axial loads across conveyor systems, gearboxes, pumps, and fans. Its self-aligning capability naturally compensates for shaft deflections and angular misalignments without increasing friction or mechanical stress. This open bearing with a cylindrical bore and normal radial internal clearance (CN) measures 75 x 130 x 31 mm. Thanks to the lubrication groove and holes in the outer ring, you can easily carry out routine relubrication without disassembly, preventing premature wear and extending machine service life.

Product information FAQ

€220.60

In stock - tax incl.

Key features according to our expert

Inner diameter: 75 mm
Width: 31 mm
Number of rows: 2
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Radial clearance: CN (Normal)
Material (cage): Brass (sheet)
Bore type: Cylindrical
Outer diameter: 130 mm

Product description

Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.

Accommodate misalignment
High load carrying capacity
Relubrication features
Low friction and long service life
Increased wear resistance

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 75 mm
Width: 31 mm
Number of rows: 2
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Radial clearance: CN (Normal)
Material (cage): Brass (sheet)
Bore type: Cylindrical
Outer diameter: 130 mm
Reference speed: 4800
Basic static load rating: 240
Relubrication feature: With
Tolerance class for run-out: P5
Skf performance class: SKF Explorer
Lubricant: None
Cage: Sheet metal
Locating feature, bearing outer ring: Without
Radial internal clearance: CN
Basic dynamic load rating: 217
Sealing: Without
Limiting speed: 6300
Bore diameter: 75
Outer diameter: 130
Tolerance class for dimensions: Normal

Brand SKF
01090039
EAN 7316576652424
Supplier number SKF 22215 E

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this spherical roller bearing?: The SKF 22215 E has an inside diameter of 75 mm, an outside diameter of 130 mm, and a width of 31 mm.
What bore type and internal clearance does this bearing have?: This bearing features a cylindrical bore and normal radial internal clearance (CN).
Does this bearing come with built-in seals?: No, this is an open bearing without seals, designed for lubrication through its integrated relubrication features.
Can this bearing accommodate misalignment and heavy loads?: Yes, the double row spherical design is self-aligning and accommodates shaft deflections as well as heavy radial and axial loads.
Can the bearing be relubricated?: Yes, it features an annular groove and lubrication holes in the outer ring for easy relubrication.
