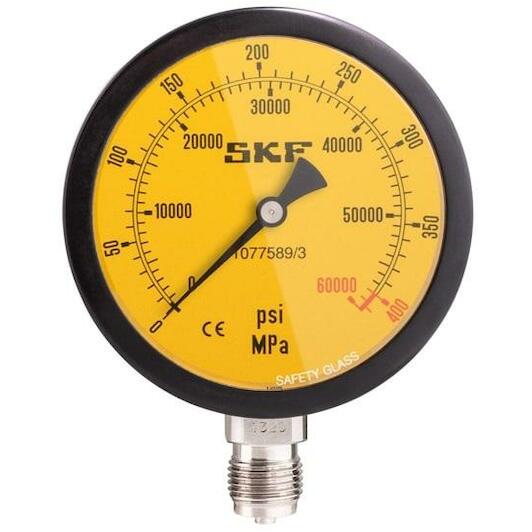

SKF 1077589/3 hydraulic pressure gauge

Supplier number: SKF 1077589/3 | EAN 7316575915612

Recommended Retail Price €1,597.14

1,092.40 tax incl.

€902.81 excl. VAT (incl. all environmental contributions)

On order: delivered from 14/10/2026

Delivery by DHL

✆ Talk to a specialist

Product information

€1,092.40

tax incl.

Key features according to our expert

Min. pressure: 0 bar
Connection position: Bottom connection
Max. pressure: 4000 bar
Accuracy class: 1
With glycerine: Yes
Material (housing): Stainless steel
Thread type: BSPP
Connection type: External thread
Diameter: 110 mm
Connection size: 1/2"

Product description

SKF Pressure Gauges are designed to fit SKF Hydraulic Pumps and SKF Oil Injectors. The gauges are all liquid filled and equipped with a restriction screw in order to absorb any sudden pressure drop thereby preventing damage. Safety glass and blowout discs are standard for all gauges and all have dual scales (MPa/psi). For pressures up to 4000 bar (400 MPa/58,000 psi)

Protection against sudden pressure drops
Safety glass and blow out discs on all gauges
Stainless steel case
Dual scales MPa/psi
Easy to read, high visibility yellow gauge faces

All Features

Min. pressure: 0 bar
Connection position: Bottom connection
Max. pressure: 4000 bar
Accuracy class: 1
With glycerine: Yes
Material (housing): Stainless steel
Thread type: BSPP
Connection type: External thread
Diameter: 110 mm
Connection size: 1/2"
Degree of protection (ip): IP 65
Operating temperature range: 0-40
Housing outer diameter: 110
Recommended applications: SKF pressure gauges are designed to fit SKF hydraulic pumps and oil injectors.
Certifications: none
Connecting thread: G 1/2
Suitable for drive up method: No, but allows bearing mounting with Feeler Gauge Method
Pressure range: 0-4000
Coating: Powder coated
Material: Stainless steel housing, Safety glass
Color code: Black housing, Yellow dial
Recommended storage temperature: -20-65
