Which chain type is this connecting link compatible with?

This link is designed for 08B-1 simplex roller chains according to BS/ISO standards with a 1/2" (12.7 mm) pitch.

How is the No. 26 connecting link secured?

It is a slip-fit connecting link that is assembled by hand and secured with a spring clip.

What material is this connecting link made of?

It is made of stainless steel, providing resistance against corrosion and moisture.

What is the breaking strength of this connecting link?

This stainless steel connecting link has a breaking strength of 12000 N.

What are the main dimensions of this link?

It has a 12.7 mm pitch, 7.75 mm inside width, 4.45 mm pin diameter, and a pin length of 16.5 mm.

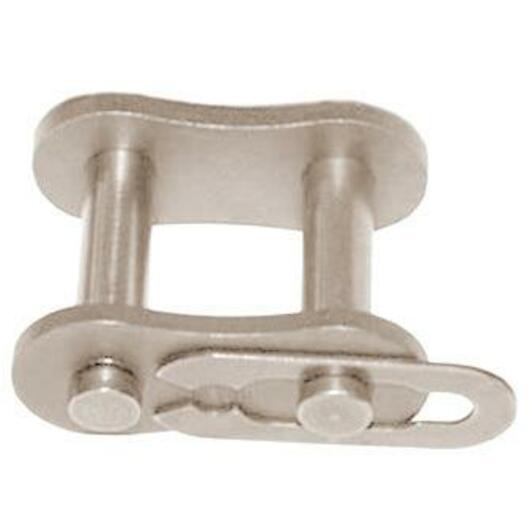

RENOLD stainless steel 08B-1 No. 26 closing link simplex 1/2" - 08B1SSS26I

Name: RENOLD stainless steel 08B-1 No. 26 closing link simplex 1/2" - 08B1SSS26I
Brand: RENOLD
SKU: 03030140
Price: 13.54 EUR
Availability: InStock

Supplier number: RENOLD 08B1SSS26I | EAN 0673766038213

13.54 tax incl.

€11.19 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Delivery by DHL

✆ Talk to a specialist

Reliable chain connections with Renold links

Practical benefits

High resistance to corrosion: The stainless steel construction ensures you maintain durable performance even in wet or demanding environments.
Solid mechanical tensile strength: With a breaking strength of 12000 N, you handle demanding drive loads with complete confidence.
Fast and simple installation: The No. 26 spring clip design lets you connect and service your simplex chain quickly.

In a nutshell

The right choise for

With the Renold No. 26 connecting link, you can quickly and reliably join or repair your 08B-1 simplex roller chain. Thanks to its stainless steel construction, your chain drive stays fully protected against moisture, corrosion, and contamination, making it ideal for washdown conveyors and equipment in demanding environments like food processing. The practical spring clip design enables easy assembly without specialized press tools, while the 12000 n breaking strength reliably handles demanding drive loads. Keep your machinery running smoothly with a secure, durable chain connection built to perform.

Product information FAQ

€13.54

In stock - tax incl.

Key features according to our expert

Pitch: 1/2 inch; 12,7 mm
Length (pin): 16,5 mm
Product line: Renold Stainless Steel
Weight (kg/m): 0,7 kg/m
Thickness (outer plate): 1,55 mm
Type (ISO/ANSI): 08B-1
Height: 2
Inside width: 7,75 mm
Breaking strength: 12000 N
Diameter (pin): 4,45 mm
Thickness (inner plate): 1,55 mm
Plate height: 11,7 mm
Number of the connecting link: 26
Version (link): Simplex

Product description:

Renold's stainless steel chain is manufactured from high-quality materials.
These perform very well in environments that are acidic or alkaline, where direct contact with food is a possibility, where the chain is exposed to water, and in places with very high or low temperatures (-40 °C to +400 °C) where corrosion resistance is a requirement.
Renold's stainless steel chain offers a solution when resistance to chemical reactions is crucial.
FDA-approved material is used during production and is pre-lubricated with a USDA H1-approved lubricant
All parts are made of austenitic, rust-resistant steel
All parts receive surface treatment to remove stress concentrations
Lubrication that improves wear resistance
Tensile strength of approximately 65% of a standard carbon steel chain

All Features

Pitch: 1/2 inch; 12,7 mm
Length (pin): 16,5 mm
Product line: Renold Stainless Steel
Weight (kg/m): 0,7 kg/m
Thickness (outer plate): 1,55 mm
Type (iso/ansi): 08B-1
Height: 2
Inside width: 7,75 mm
Breaking strength: 12000 N
Diameter (pin): 4,45 mm
Thickness (inner plate): 1,55 mm
Plate height: 11,7 mm
Number of the connecting link: 26
Version (link): Simplex

Brand RENOLD
03030140
EAN 0673766038213
Supplier number RENOLD 08B1SSS26I

Frequently asked questions about this product

Answered by specialists

Which chain type is this connecting link compatible with?: This link is designed for 08B-1 simplex roller chains according to BS/ISO standards with a 1/2" (12.7 mm) pitch.
How is the No. 26 connecting link secured?: It is a slip-fit connecting link that is assembled by hand and secured with a spring clip.
What material is this connecting link made of?: It is made of stainless steel, providing resistance against corrosion and moisture.
What is the breaking strength of this connecting link?: This stainless steel connecting link has a breaking strength of 12000 N.
What are the main dimensions of this link?: It has a 12.7 mm pitch, 7.75 mm inside width, 4.45 mm pin diameter, and a pin length of 16.5 mm.
