RENOLD BLUE 12B-2 No. 26 connecting link duplex 3/4" - 12B2S26I

Name: RENOLD BLUE 12B-2 No. 26 connecting link duplex 3/4" - 12B2S26I
Brand: RENOLD
SKU: 03030013
Price: 10.68 EUR
Availability: InStock

Supplier number: RENOLD 12B2S26I | EAN 0673766007004

10.68 tax incl.

€8.83 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Delivery by DHL

✆ Talk to a specialist

Dependable connection for duplex chains

Practical benefits

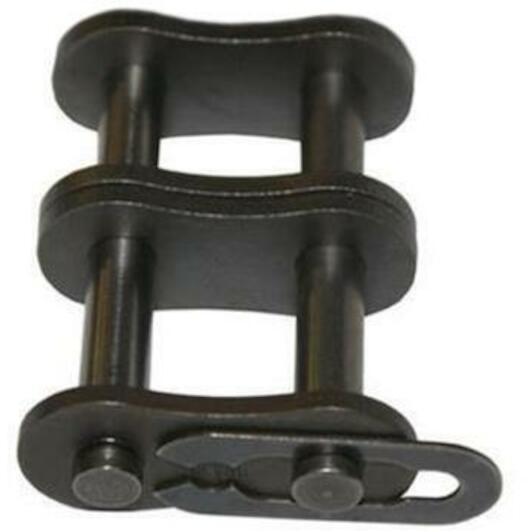

Renold Blue connecting link: This Renold Blue 12B-2 No. 26 sluitschakel duplex BS 3/4" connects your duplex roller chain smoothly and securely.
Outstanding tensile breaking load: With a breaking strength of 57800 N, you get dependable strength during demanding drive operations.
Accurate standard duplex dimensions: Featuring a 19.05 mm pitch and 5.72 mm pin diameter, you ensure precise fitting without unnecessary wear.

In a nutshell

The right choise for

With the Renold Blue 12B-2 No. 26 connecting link duplex 3/4", you close your 12B-2 duplex roller chain into a continuous loop quickly and securely. It is ideal for servicing or repairing industrial drives, conveyor systems, and agricultural machinery without having to replace the entire chain. The spring clip fastening ensures fast and straightforward installation or disassembly on site. Featuring a breaking strength of 57800 N, a 19.05 mm pitch, and a 5.72 mm pin diameter, you restore mechanical drive continuity and dependable power transmission effortlessly.

Product information FAQ

€10.68

In stock - tax incl.

Key features according to our expert

Pitch: 3/4 inch; 19,05 mm
Length (pin): 41,4 mm
Product line: Renold Blue
Weight (kg/m): 2,42 kg/m
Thickness (outer plate): 1,81 mm
Type (ISO/ANSI): 12B-2
Height: 2,6
Inside width: 11,68 mm
Breaking strength: 57800 N
Diameter (pin): 5,72 mm
Thickness (inner plate): 1,81 mm
Plate height: 16 mm
Number of the connecting link: 26
Version (link): Duplex

Product description:

Conveyor chains, like roller chains, can be made to different international standards. The main standards are:

British Standard (BS):
- This standard applies to chains made for the British market and for markets where British presence has had a major influence on technical design and buying behaviour. This standard is based on Renold's original conveyor chain design.
ISO Standard chains:
- Chains made to the ISO Standard are not interchangeable with chains made to the BS or DIN Standard.
- This standard is widely used in the European market, except in Germany.
- Chains made according to this standard are becoming increasingly popular and are widely used in Scandinavia.
- Renold has a lot of experience in producing conveyor chains.
- Renold's conveyor chains are based on many years of design and development, allowing us to deliver the optimal product.
- To ensure that this quality is reflected in the performance of our products, we carry out strict checks on:
  - Materials
  - Heat treatment
  - Processes
  - Fittings
  - Attachment assembly
  - Lubrication
  - Conveyor Chain Exploded View
Ultimate Renold reliability:
- The key to the reliability of Renold chains is consistency in design and manufacturing.
- The chains' maximum strength and wear resistance are achieved by strictly controlling material specification and using state-of-the-art heat treatment processes.
- The consistent overall tolerability of Renold chains makes them ideal for conveyor systems that require precise alignment of different chain mechanisms.
- The breaking load is greater than the internationally required minimum.
- For optimum performance, it is important to choose the right chain.
- Renold's experienced design team is always at your disposal for free advice on specific products and applications.
- Standard and Deep Link conveyor chains are available for BS4116 part 4 and for ISO 1977, with both hollow and solid pins.
Extra strong standard conveyor chain:
- Complementing our standard range of conveyor chains to British Standard, we offer this extra strong chain suitable for conveyor applications requiring ultimate tensile strength (breaking load).
- Each chain has the same dimensions as its normal counterpart.
- For example, an extra strong chain of 11,000 kilos (24000 lbs) has the same dimensions as a normal chain of 5500 kilos (12000 lbs).
- This chain is frequently used to transport animal feed and unpackaged foodstuffs such as grain, corn, wheat and raw food mixtures.
- Most of these applications use scraper conveyor systems with large spacing between sprockets. Such systems sometimes move slowly, with little or no shock loading.

All Features

Pitch: 3/4 inch; 19,05 mm
Length (pin): 41,4 mm
Product line: Renold Blue
Weight (kg/m): 2,42 kg/m
Thickness (outer plate): 1,81 mm
Type (iso/ansi): 12B-2
Height: 2,6
Inside width: 11,68 mm
Breaking strength: 57800 N
Diameter (pin): 5,72 mm
Thickness (inner plate): 1,81 mm
Plate height: 16 mm
Number of the connecting link: 26
Version (link): Duplex

Brand RENOLD
03030013
EAN 0673766007004
Supplier number RENOLD 12B2S26I

Frequently asked questions about this product

Answered by specialists

Which chain type is this connecting link suitable for?: It is designed for 12B-2 duplex roller chains (BS/ISO) with a 19.05 mm (3/4") pitch.
What closure type does link No. 26 use?: No. 26 is a standard connecting link with a spring clip fastening for quick and simple installation.
What are the key dimensions of this connecting link?: It features a 19.05 mm pitch, 11.68 mm inside width, 5.72 mm pin diameter, and a pin length of 41.4 mm.
What is the breaking strength of this link?: The breaking strength of this Renold Blue 12B-2 duplex connecting link is 57800 N.
