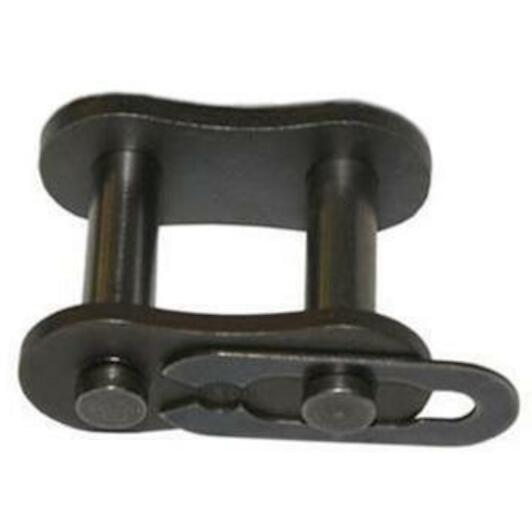

RENOLD BLUE 08B-1 No. 26 closing link simplex 1/2" - 08B1S26I

Name: RENOLD BLUE 08B-1 No. 26 closing link simplex 1/2" - 08B1S26I
Brand: RENOLD
SKU: 03030003
Price: 3.88 EUR
Availability: InStock

Supplier number: RENOLD 08B1S26I | EAN 0673766001576

3.88 tax incl.

€3.21 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Delivery by DHL

✆ Talk to a specialist

Reliable chain connection for smooth drive

Practical benefits

Fast and simple installation: You easily connect chain ends with the spring clip design to maintain dependable mechanical power transmission.
High breaking load performance: Built with a 17800 N breaking load, you keep industrial operations running securely under tension.
Precise fit for 08B-1: The exact 12.7 mm pitch ensures this Renold link integrates seamlessly into your simplex roller chain.

In a nutshell

The right choise for

With the Renold Blue 08B-1 NO. 26 connecting link simplex bs 1/2", you quickly connect or repair your 08B-1 roller chain. Thanks to the practical spring clip design, you easily fit the two pins and loose cover plate to get your machinery back up and running without unnecessary downtime. Featuring a 12.7 MM pitch, an inside width of 7.75 MM, and a breaking strength of 17800 N, this link integrates seamlessly into industrial drive and conveyor systems. It gives you the dependable performance you need for fast and effective machine maintenance.

Product information FAQ

€3.88

In stock - tax incl.

Key features according to our expert

Pitch: 1/2 inch; 12,7 mm
Length (pin): 16,5 mm
Product line: Renold Blue
Weight (kg/m): 0,7 kg/m
Thickness (outer plate): 1,55 mm
Type (ISO/ANSI): 08B-1
Height: 2
Inside width: 7,75 mm
Breaking strength: 17800 N
Diameter (pin): 4,45 mm
Thickness (inner plate): 1,55 mm
Plate height: 11,7 mm
Number of the connecting link: 26
Version (link): Simplex

Product description:

Conveyor chains, like roller chains, can be made to different international standards. The main standards are:

British Standard (BS):
- This standard applies to chains made for the British market and for markets where British presence has had a major influence on technical design and buying behaviour. This standard is based on Renold's original conveyor chain design.
ISO Standard chains:
- Chains made to the ISO Standard are not interchangeable with chains made to the BS or DIN Standard.
- This standard is widely used in the European market, except in Germany.
- Chains made according to this standard are becoming increasingly popular and are widely used in Scandinavia.
- Renold has a lot of experience in producing conveyor chains.
- Renold's conveyor chains are based on many years of design and development, allowing us to deliver the optimal product.
- To ensure that this quality is reflected in the performance of our products, we carry out strict checks on:
  - Materials
  - Heat treatment
  - Processes
  - Fittings
  - Attachment assembly
  - Lubrication
  - Conveyor Chain Exploded View
Ultimate Renold reliability:
- The key to the reliability of Renold chains is consistency in design and manufacturing.
- The chains' maximum strength and wear resistance are achieved by strictly controlling material specification and using state-of-the-art heat treatment processes.
- The consistent overall tolerability of Renold chains makes them ideal for conveyor systems that require precise alignment of different chain mechanisms.
- The breaking load is greater than the internationally required minimum.
- For optimum performance, it is important to choose the right chain.
- Renold's experienced design team is always at your disposal for free advice on specific products and applications.
- Standard and Deep Link conveyor chains are available for BS4116 part 4 and for ISO 1977, with both hollow and solid pins.
Extra strong standard conveyor chain:
- Complementing our standard range of conveyor chains to British Standard, we offer this extra strong chain suitable for conveyor applications requiring ultimate tensile strength (breaking load).
- Each chain has the same dimensions as its normal counterpart.
- For example, an extra strong chain of 11,000 kilos (24000 lbs) has the same dimensions as a normal chain of 5500 kilos (12000 lbs).
- This chain is frequently used to transport animal feed and unpackaged foodstuffs such as grain, corn, wheat and raw food mixtures.
- Most of these applications use scraper conveyor systems with large spacing between sprockets. Such systems sometimes move slowly, with little or no shock loading.

All Features

Pitch: 1/2 inch; 12,7 mm
Length (pin): 16,5 mm
Product line: Renold Blue
Weight (kg/m): 0,7 kg/m
Thickness (outer plate): 1,55 mm
Type (iso/ansi): 08B-1
Height: 2
Inside width: 7,75 mm
Breaking strength: 17800 N
Diameter (pin): 4,45 mm
Thickness (inner plate): 1,55 mm
Plate height: 11,7 mm
Number of the connecting link: 26
Version (link): Simplex

Brand RENOLD
03030003
EAN 0673766001576
Supplier number RENOLD 08B1S26I

Frequently asked questions about this product

Answered by specialists

Which chain type is this connecting link suitable for?: This link is designed for simplex roller chains of type 08B-1 according to European standards (BS/ISO) with a 12.7 mm (1/2") pitch.
How is this No. 26 connecting link secured?: The link features two pins and a loose cover plate that is secured in place using a spring clip.
What is the breaking strength of this connecting link?: The breaking strength of this Renold Blue connecting link is 17800 N.
What are the key dimensions of this chain link?: The pitch is 12.7 mm, inside width is 7.75 mm, pin diameter is 4.45 mm, and pin length is 16.5 mm.
Can this link be used on an ANSI standard chain?: No, this link is made specifically for BS/ISO 08B-1 chains and does not fit ANSI standard chains such as ANSI 40.
