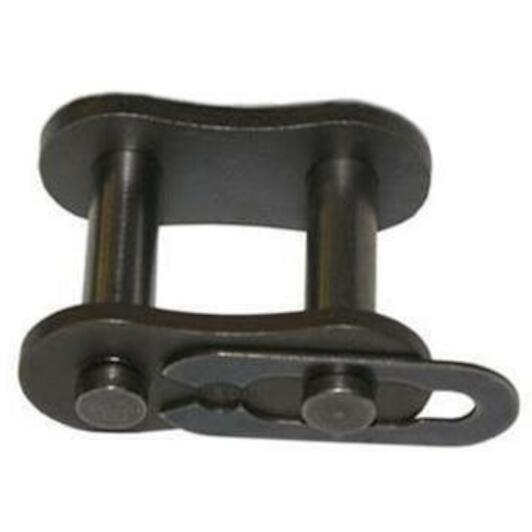

RENOLD BLUE 05B-1 No. 26 connecting link simplex 5/16" - 05B1S26I

RENOLD
Supplier number: RENOLD 05B1S26I | EAN 6623901217588
12.34 tax incl.
€10.20 excl. VAT (incl. all environmental contributions)
On stock - immediately available

  • Delivery by DHL
✆ Talk to a specialist

Secure chain assembly with Renold

Practical benefits
  • Quick and simple fitting: You can install this connecting link effortlessly thanks to the practical snap-on spring clip design.
  • Dependable tensile breaking strength: Rated at a 4400 N breaking load, it reliably handles operational drive forces without failure.
  • Standardized BS 05B-1 compatibility: Precise ISO dimensions ensure smooth engagement and optimal alignment across your compatible drive sprockets.

In a nutshell

The right choise for

Keep your drive systems running smoothly with the Renold Blue 05B-1 No. 26 simplex connecting link. Designed with a convenient spring clip, this connecting link lets you quickly join, shorten, or repair an 8 mm pitch 05B-1 roller chain without needing special press tools. With a 4400 n breaking strength and precision bs standard dimensions, it reliably handles tensile loads across conveyor systems and industrial machinery, preventing downtime and saving you from replacing the entire chain.



Product information FAQ
€12.34
In stock - tax incl.

Product information

Key features according to our expert

  • Pitch: 8 mm
  • Length (pin): 8,6 mm
  • Product line: Renold Blue
  • Weight (kg/m): 0,18 kg/m
  • Thickness (outer plate): 0,76 mm
  • Type (ISO/ANSI): 05B-1
  • Height: 1,5
  • Inside width: 3 mm
  • Breaking strength: 4400 N
  • Diameter (pin): 2,31 mm
  • Thickness (inner plate): 0,76 mm
  • Plate height: 7,11 mm
  • Number of the connecting link: 26
  • Version (link): Simplex

Product description:

  • Conveyor chains, like roller chains, can be made to different international standards. The main standards are:

    British Standard (BS):

    • This standard applies to chains made for the British market and for markets where British presence has had a major influence on technical design and buying behaviour. This standard is based on Renold's original conveyor chain design.

    ISO Standard chains:

    • Chains made to the ISO Standard are not interchangeable with chains made to the BS or DIN Standard.
    • This standard is widely used in the European market, except in Germany.
    • Chains made according to this standard are becoming increasingly popular and are widely used in Scandinavia.
    • Renold has a lot of experience in producing conveyor chains.
    • Renold's conveyor chains are based on many years of design and development, allowing us to deliver the optimal product.
    • To ensure that this quality is reflected in the performance of our products, we carry out strict checks on:
      • Materials
      • Heat treatment
      • Processes
      • Fittings
      • Attachment assembly
      • Lubrication
      • Conveyor Chain Exploded View

    Ultimate Renold reliability:

    • The key to the reliability of Renold chains is consistency in design and manufacturing.
    • The chains' maximum strength and wear resistance are achieved by strictly controlling material specification and using state-of-the-art heat treatment processes.
    • The consistent overall tolerability of Renold chains makes them ideal for conveyor systems that require precise alignment of different chain mechanisms.
    • The breaking load is greater than the internationally required minimum.
    • For optimum performance, it is important to choose the right chain.
    • Renold's experienced design team is always at your disposal for free advice on specific products and applications.
    • Standard and Deep Link conveyor chains are available for BS4116 part 4 and for ISO 1977, with both hollow and solid pins.

    Extra strong standard conveyor chain:

    • Complementing our standard range of conveyor chains to British Standard, we offer this extra strong chain suitable for conveyor applications requiring ultimate tensile strength (breaking load).
    • Each chain has the same dimensions as its normal counterpart.
    • For example, an extra strong chain of 11,000 kilos (24000 lbs) has the same dimensions as a normal chain of 5500 kilos (12000 lbs).
    • This chain is frequently used to transport animal feed and unpackaged foodstuffs such as grain, corn, wheat and raw food mixtures.
    • Most of these applications use scraper conveyor systems with large spacing between sprockets. Such systems sometimes move slowly, with little or no shock loading.

All Features

Pitch
8 mm
Length (pin)
8,6 mm
Product line
Renold Blue
Weight (kg/m)
0,18 kg/m
Thickness (outer plate)
0,76 mm
Type (iso/ansi)
05B-1
Height
1,5
Inside width
3 mm
Breaking strength
4400 N
Diameter (pin)
2,31 mm
Thickness (inner plate)
0,76 mm
Plate height
7,11 mm
Number of the connecting link
26
Version (link)
Simplex
  • Brand RENOLD
  • EAN 6623901217588
  • Supplier number RENOLD 05B1S26I

Frequently asked questions about this product

Answered by specialists
Which chain is this connecting link suitable for?
This connecting link is suitable for 05B-1 simplex roller chains with an 8 mm (5/16") pitch.
What type of fastener is link No. 26?
Link No. 26 is a standard connecting link featuring a detachable outer plate and a spring clip.
What is the breaking strength of this connecting link?
The breaking strength is 4400 N in accordance with ISO/BS standards for 05B-1 chain.
What are the key dimensions of this connecting link?
It features an 8 mm pitch, 3 mm inside width, 2,31 mm pin diameter, and 8,6 mm pin length.
