What is the maximum lifting capacity of this ratchet hoist?

The working load limit (WLL) of this Rema ratchet hoist is 500 kg.

What lifting height does this model offer?

This model comes with a chain length providing a 3 m lifting height.

What applications is the Rema X-LH ratchet hoist suitable for?

You can use this lever hoist for lifting, pulling, tensioning, and lashing.

How do you adjust the chain when there is no load?

In an unloaded state, you can use the freewheel function to quickly position the chain.

What safety features are built into the braking system?

The hoist is equipped with a double pawl system and asbestos-free friction discs.

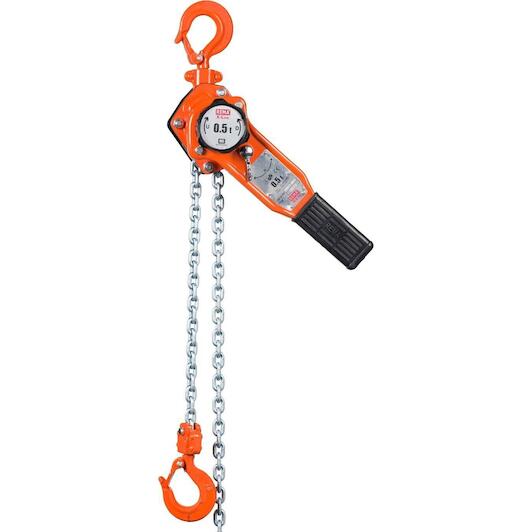

REMA X-LH/500KG/3M ratchet hoist (500kg/3m) - 0270001-3

Name: REMA X-LH/500KG/3M ratchet hoist (500kg/3m) - 0270001-3
Brand: REMA
SKU: 02802806
Price: 184.48 EUR
Availability: InStock

Supplier number: REMA 0270001-3 | EAN 8717365096860

184.48 tax incl.

€152.46 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Delivery by DHL

✆ Talk to a specialist

Efficient lifting with the Rema hoist

Practical benefits

Reliable 500 kg load capacity: You lift, tension, and position loads up to 500 kg securely with the 3 m chain reach.
Secure automatic load brake: The integrated brake mechanism ensures you maintain full holding safety and control under heavy loads.
Ergonomic lever operation: You work comfortably with minimal physical effort thanks to the durable rubberized hand grip.

In a nutshell

The right choise for

With the Rema x-lh ratchet hoist, you lift, tension, and position heavy loads up to 500 kg with complete control and precision. Thanks to the 3 m chain reach, you can effortlessly perform lifting, pulling, and lashing tasks in workshops, garages, and on construction sites without needing an electrical power supply. The reliable double pawl braking system with asbestos-free friction discs keeps every load firmly and securely held in place. In an unloaded state, the practical freewheel function allows you to adjust the chain quickly by hand. The ergonomic rubberized hand grip and light lever operation ensure you work comfortably and accurately with minimal physical effort.

Product information FAQ

€184.48

In stock - tax incl.

Key features according to our expert

Max. weight: 500 kg
Length: 3 m

Product description

The Rema X-Line ratchet hoist for safe and reliable operation when lifting, pulling, tensioning or lashing.

Features

Low operating force at full load.
Enhanced operational safety thanks to a double pawl system.
Load-pressure brake fitted with asbestos-free friction discs.
Free-wheeling when unloaded.
Load sprocket is made from wear-resistant alloy steel.
The top and bottom hooks are fitted with safety latches.
In the event of overload, the hooks will bend gradually rather than snap off abruptly.
Galvanised load chain (Grade 8 in accordance with EN 818/7).
Steel housing with an orange powder coating.

Option

Any other required lifting height.

All Features

Max. weight: 500 kg
Length: 3 m
Number of lots: 1
Lifting height: 3 m
Building height: 310 mm
Hand force maximum: 24.8 kg
Weight: 6.40 kg

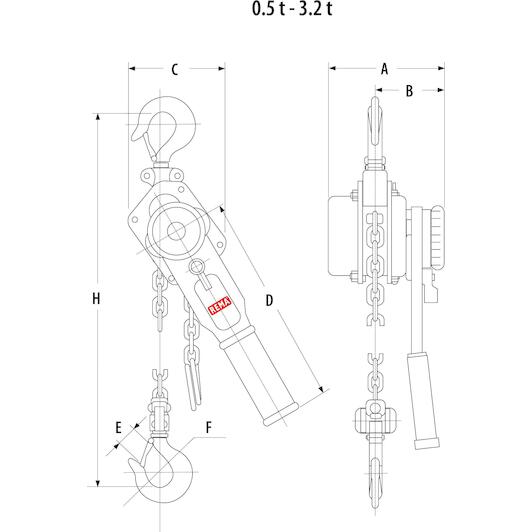

E: 22 mm
A: 150 mm
H: 310 mm
Safe working load: 500 kg
D: 253 mm
F: 32 mm
B: 90 mm
C: 118 mm
Load chain dxt: 5.0 x 15.0 mm

Brand REMA
02802806
EAN 8717365096860
Supplier number REMA 0270001-3

Frequently asked questions about this product

Answered by specialists

What is the maximum lifting capacity of this ratchet hoist?: The working load limit (WLL) of this Rema ratchet hoist is 500 kg.
What lifting height does this model offer?: This model comes with a chain length providing a 3 m lifting height.
What applications is the Rema X-LH ratchet hoist suitable for?: You can use this lever hoist for lifting, pulling, tensioning, and lashing.
How do you adjust the chain when there is no load?: In an unloaded state, you can use the freewheel function to quickly position the chain.
What safety features are built into the braking system?: The hoist is equipped with a double pawl system and asbestos-free friction discs.
