What is the working load limit of this eye bolt?

The safe working load (WLL) is 700 kg for straight, aligned lifting in accordance with DIN 580.

What thread dimensions does this Rema eye bolt have?

This eye bolt features a standard metric M16 thread with a thread length of 27 mm.

What is the internal eye diameter?

The eye diameter measures 35 mm, allowing smooth attachment of shackles and lifting hooks.

Can this eye bolt handle side loading?

No, standard DIN 580 eye bolts are designed for straight inline lifting and must not be loaded sideways.

What surface finish does this eye bolt have?

The C15E steel body is zinc plated to protect against corrosion and mechanical wear.

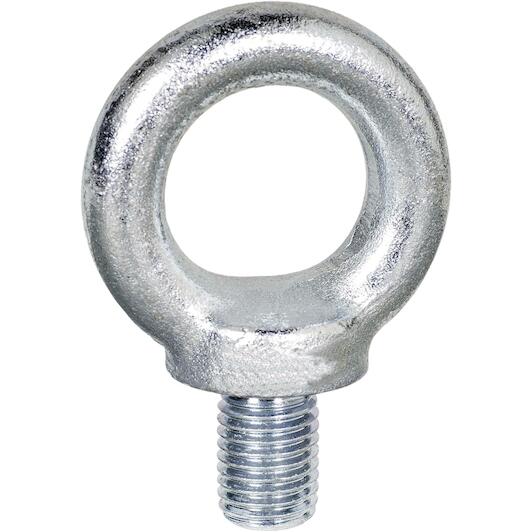

REMA DIN580-C15E-M16-700KG eye bolt (M16-700kg) - 3015109

Name: REMA DIN580-C15E-M16-700KG eye bolt (M16-700kg) - 3015109
Brand: REMA
SKU: 02083588
Price: 6.05 EUR
Availability: InStock

Supplier number: REMA 3015109 | EAN 8717365183560

6.05 tax incl.

€5.00 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Delivery by DHL

✆ Talk to a specialist

Dependable lifting using Rema

Practical benefits

Strong 700 kg working load: You lift heavy equipment and components with confidence using the certified 700 kg load capacity.
Solid M16 threaded connection: The M16 thread with 27 mm length securely anchors into compatible tapped machine housings.
Long-lasting zinc-plated steel: Galvanized steel construction protects the eye bolt from corrosion and wear in challenging workshop conditions.

In a nutshell

The right choise for

With the Rema G8140 eye bolt, you instantly establish a certified and reliable lifting point for heavy components. When you need to move machinery, engines, or generators, this din 580 eye bolt threads securely into any pre-tapped M16 hole. Thanks to the 27 mm thread length and a safe working load of 700 kg, you can lift heavy loads inline with complete confidence. The 35 mm eye diameter allows hooks and shackles to connect smoothly. Built from zinc-plated C15E steel, it resists corrosion effectively, ensuring dependable and controlled lifting operations in demanding workshop environments.

Product information FAQ

€6.05

In stock - tax incl.

Key features according to our expert

Thread length: 27 mm
Eye diameter: 35 mm
Material: Steel
Surface treatment: Zinc plated
Safe working load: 700 kg
Thread designation: M16

Product description:

In compliance with DIN 580. Zinc-coated.

IMPORTANT

Only use in a straight lifting position.

Certificate of Conformity

Not included

All Features

Thread length: 27 mm
Eye diameter: 35 mm
Material: Steel
Surface treatment: Zinc plated
Safe working load: 700 kg
Thread designation: M16
Weight: 0.28 kg/st/m

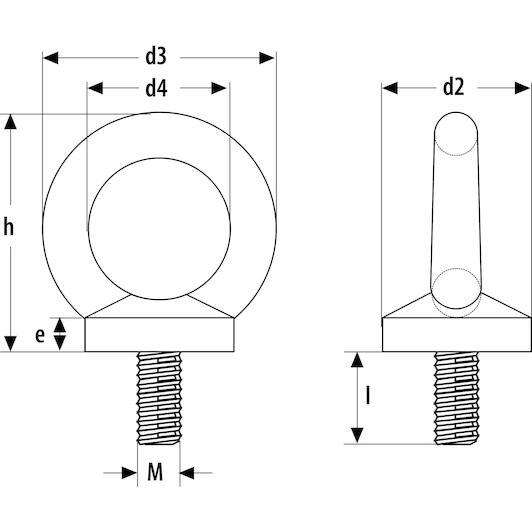

M: 16 mm
D3: 63 mm
Safe working load: 700 kg
L: 27 mm
D2: 35 mm
E: 12 mm
H: 62 mm
D4: 35 mm

Brand REMA
02083588
EAN 8717365183560
Supplier number REMA 3015109
