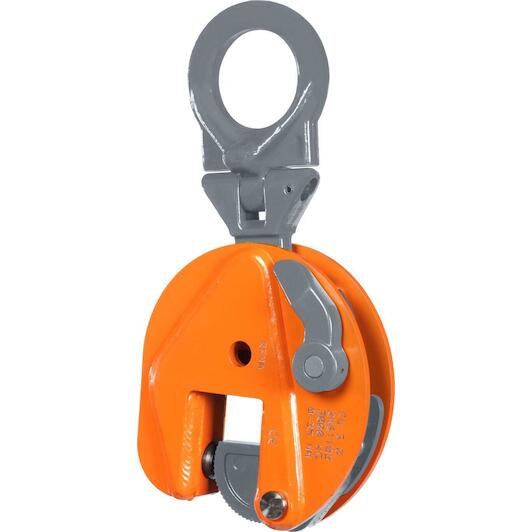

REMA CU-9.0 Universal lifting clamp for sheets up to 37RC (345 HB) - 3363009

REMA
Supplier number: REMA 3363009 | EAN 8717365015755
1,558.79 tax incl.
€1,288.26 excl. VAT (incl. all environmental contributions)
On order: delivered from 02/12/2026

  • Delivery by DHL
✆ Talk to a specialist


Product information
€1,558.79
tax incl.

Product information

Key features according to our expert

  • Max. working load: 9 t
  • Min. clamping capacity: 0 mm
  • Max. clamping capacity: 55 mm

Product description

Lifting clamps with a universal lifting eye for the safe lifting and transport of steel plates in a vertical position.

Minimum load: 10 per cent of the safe working load.

  • Features
  • Fitted with a universal lifting eye, movable in two directions.
  • A safety lock applies an initial force to the plate via a spring, preventing it from falling out of the clamp.
  • The WLL and jaw opening dimensions are clearly marked on the clamp.
  • Safety factor of at least 5 x WLL.
  • Each clamp is test-loaded to 2 x WLL.

Application

  • For lifting steel plates up to a hardness of 37 RC (345 HB).
  • Suitable for lifting, 180° rotation and vertical transport of steel plates.

All Features

Max. working load
9 t
Min. clamping capacity
0 mm
Max. clamping capacity
55 mm

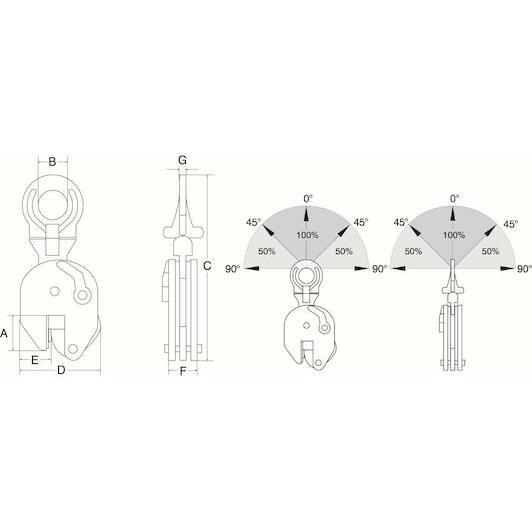

G
45 mm
Weight
30 kg
E
70 mm
A
112 mm
D
267 mm
Safe working load
9000 kg
B
78 mm
F
86 mm
C
565 mm
Jaw-opening
0-55 mm
  • Brand REMA
  • EAN 8717365015755
  • Supplier number REMA 3363009
