Product description:
- Safety factor 6. Zinc-coated.
Certificate of Conformity
- Not included
Supplier number:
REMA 3013007
|
EAN
8717365013645
12.34
tax incl.
€10.20 excl. VAT (incl. all environmental contributions)
Dependable lifting strength for heavy loads
Practical benefits- High working load capacity: You lift heavy loads with complete confidence thanks to the rated working load limit of 1500 kg.
- Exceptional safety factor rating: With an integrated safety factor of 6, you maintain maximum security and peace of mind during demanding lifting tasks.
- Resilient in tough environments: Galvanized high-tensile steel ensures your hardware stays protected against wear and extreme temperatures between -20°C and +200°C.
In a nutshell

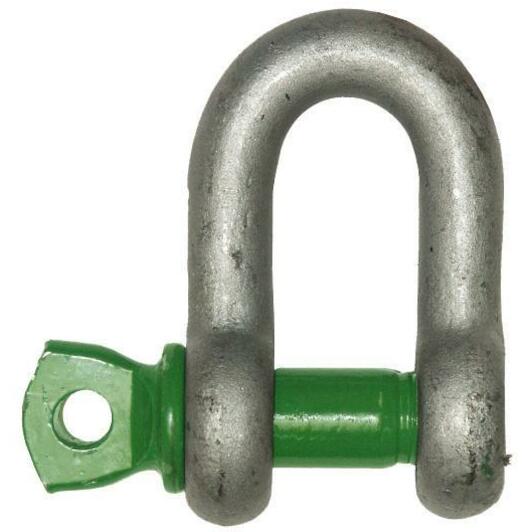

The right choise forWith the Rema G4151-7/16 D-shackle, you create a dependable and secure connection for demanding lifting and rigging tasks. Featuring a working load limit of 1500 kg and a safety factor of 6, it gives you complete confidence and control when hoisting or securing heavy loads. The 13 mm screw pin allows for quick assembly and disassembly with slings or wire ropes while preventing accidental release. Crafted from galvanized high-tensile steel with an 11 mm body diameter and weighing only 0.21 kg, this shackle performs reliably in tough environments between -20 °C and +200 °C.
Product information
Key features according to our expert
- Diameter: 11 mm
- Weight: 0,21 kg
- Max. load: 1500 kg
All Features
- Diameter
- 11 mm
- Weight
- 0,21 kg
- Max. load
- 1500 kg

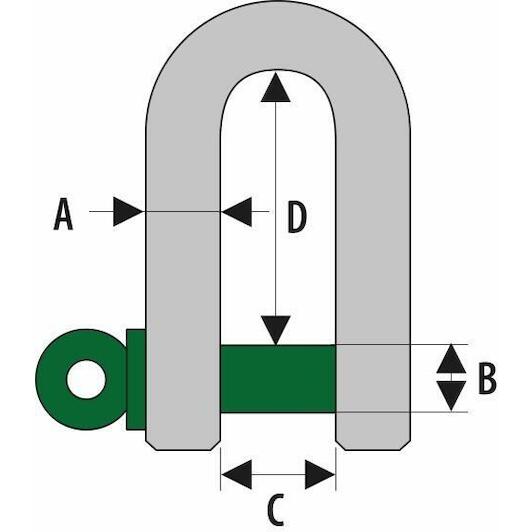

- C
- 18 mm
- B
- 13 mm
- Safe working load
- 1500 kg
- D
- 37 mm
- A
- 11 mm
- Brand REMA
- EAN 8717365013645
- Supplier number REMA 3013007
Frequently asked questions about this product
Answered by specialists
- What is the working load limit of this D-shackle?
- The working load limit (WLL) is 1500 kg (1.5 tonnes).
- What type of pin does this shackle use?
- This D-shackle is fitted with a screw pin.
- What are the body and pin diameters?
- The body diameter is 11 mm and the pin diameter is 13 mm (7/16").
- What is the operating temperature range?
- The galvanized steel shackle is suitable for temperatures from -20 °C to +200 °C.
- What is the weight of this D-shackle?
- This D-shackle weighs 0.21 kg.
