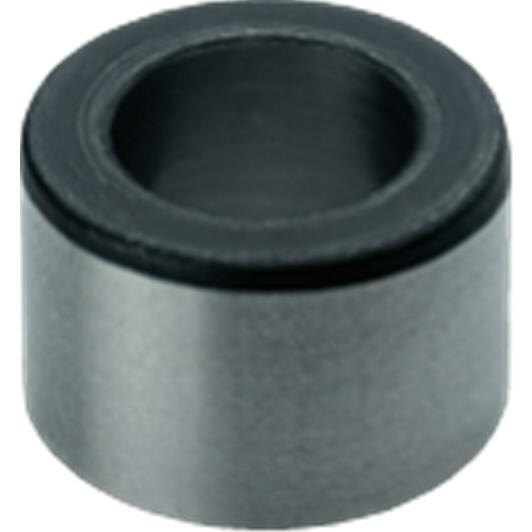

PHANTOM 848791300 drill sleeve DIN 179-A' short version 13 mm

Supplier number: PHANTOM 848791300 | EAN 8716563442400
7.77 tax incl.
€6.42 excl. VAT (incl. all environmental contributions)
On order: delivered from 09/10/2026

  • Delivery by DHL


€7.77
tax incl.

Product information

Key features according to our expert

  • Inner diameter: 13 mm
  • Length: 16 mm

Product Description:

  • Phantom DIN 179A Drill Bush short series
  • DIN 179A, in- and external ground, completely hardened, tolerance on the Bore Size F7, tolerance on the outer diameter n6

All Features

Inner diameter
13 mm
Length
16 mm
Standard
DIN 179-A
Tolerance d1 (tol. d1)
F7
Total length (l1)
16 mm
Tolerance d2 (tol. d2)
n6
Diameter ø (d2)
22 mm
Diameter ø (d1)
13 mm
  • Brand PHANTOM
  • EAN 8716563442400
  • Supplier number PHANTOM 848791300
