Precise drill guidance for jigs
- Phantom drill jig bush: Using the Phantom drill bush DIN 172-A, you achieve accurate alignment and repeatable drilling results.
- Secure positioning with collar: The integrated shoulder prevents the bushing from pushing through your drilling template under load.
- Fully hardened wear resistance: The hardened steel construction protects against intense friction to keep your fixtures accurate longer.

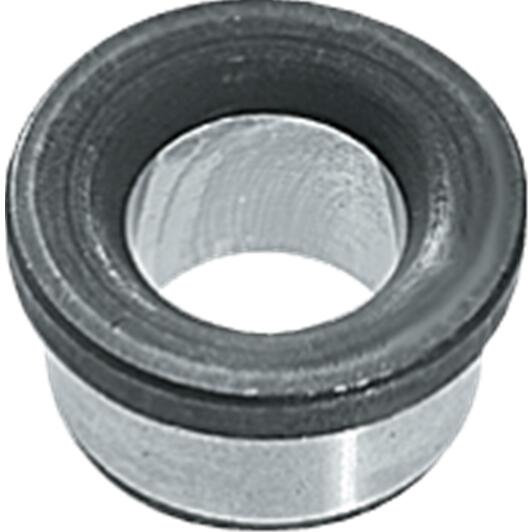

With the Phantom din 172-A drill bush, you achieve precise and repeatable drilling across all your jigs and fixtures. This short series bushing, featuring a 10.2 mm inside diameter and a 12 mm length, guides your drill bit smoothly while preventing tool wandering, deflection, and vibration. Fully through-hardened and precision-ground inside and out with an F7 bore tolerance and n6 outer tolerance, it protects reusable drilling templates from mechanical wear during repetitive production runs. The integrated collar acts as a sturdy stop to prevent the bushing from pushing through under axial load, ensuring accurate pilot holes for M12 threads every time.
Product Description:
- Phantom DIN 172A Drill Bush short series headed
- DIN 172A, in- and external ground, completely hardened, tolerance on the Bore Size F7, tolerance on the outer diameter n6
