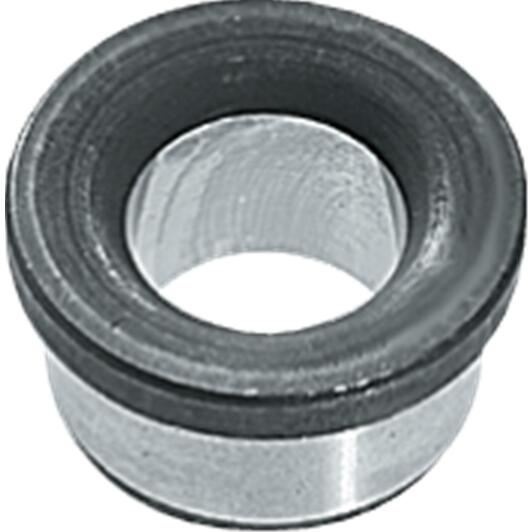

PHANTOM 848721000 drill sleeve DIN 172-A' short version' with collar 10 mm

Name: PHANTOM 848721000 drill sleeve DIN 172-A' short version' with collar 10 mm
Brand: PHANTOM
SKU: 51590024
Price: 8.26 EUR
Availability: PreOrder

Supplier number: PHANTOM 848721000 | EAN 8716563438243

8.26 tax incl.

€6.83 excl. VAT (incl. all environmental contributions)

On order: delivered from 10/10/2026

Delivery by DHL

✆ Talk to a specialist

Precise drill guidance with collar

Practical benefits

Accurate drill bit guidance: This DIN 172-A drill bushing keeps your drill bit perfectly aligned and prevents wandering during repetitive drilling operations.
Secure flanged stop design: The integrated collar stops the bushing from pushing through the jig plate, ensuring a stable seat.
Hardened wear resistant steel: Manufactured from hardened steel, this 10X12 component maintains tight tolerances over extended workshop use.

In a nutshell

The right choise for

With the Phantom din 172-A drill bush, you achieve dependable precision during repetitive drilling tasks. This short-series headed bush guides twist drill bits accurately and stops the tool from wandering or slipping during initial spotting. Thanks to the integrated collar, the bushing provides a secure axial stop that prevents it from pushing through your drill jig plate. Through-hardened and ground both internally and externally, it maintains an F7 bore tolerance and an n6 outer diameter tolerance. Featuring a 10 mm inner diameter and a 12 mm length, it protects your fixtures from mechanical wear across large production batches.

Product information FAQ

€8.26

tax incl.

Key features according to our expert

Inner diameter: 10 mm
Length: 12 mm

Product Description:

Phantom DIN 172A Drill Bush short series headed
DIN 172A, in- and external ground, completely hardened, tolerance on the Bore Size F7, tolerance on the outer diameter n6

All Features

Inner diameter: 10 mm
Length: 12 mm
Standard: DIN 172-A
Tolerance d1 (tol. d1): F7
Total length (l1): 12 mm
Length (l2): 3 mm
Diameter ø (d3): 18 mm
Tolerance d2 (tol. d2): n6
Diameter ø (d2): 15 mm
Diameter ø (d1): 10 mm

Brand PHANTOM
51590024
EAN 8716563438243
Supplier number PHANTOM 848721000

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this drill bush?: This drill bush features an inner diameter of 10 mm and a length of 12 mm.
Which standard does this drill bushing comply with?: It complies with the DIN 172-A standard for headed drill bushes in the short series.
What tolerances apply to this bush?: The drill bush has an F7 bore diameter tolerance and an n6 outer diameter tolerance.
What is the purpose of the collar?: The collar acts as an axial stop to prevent the bushing from pushing through the drill jig.
Is this drill bush hardened and ground?: Yes, Phantom DIN 172-A drill bushes are through-hardened and ground both internally and externally.
