PHANTOM

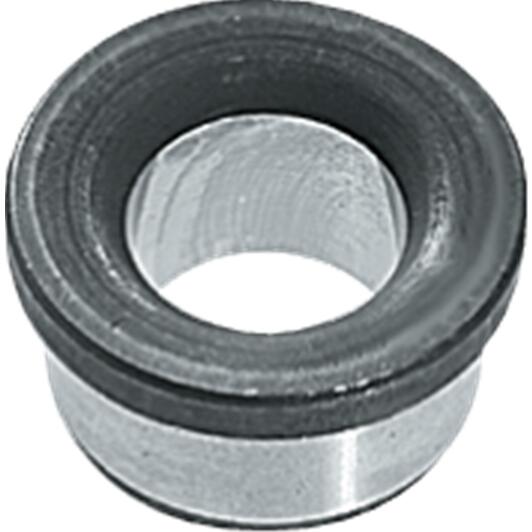

PHANTOM 848720950 drill sleeve DIN 172-A' short version' with collar 9'5 mm

8.26 tax incl.
€6.83 excl. VAT (incl. all environmental contributions)
On order: delivered from 27/05/2026
each

  • Delivery by DHL

Product Description:

  • Phantom DIN 172A Drill Bush short series headed
  • DIN 172A, in- and external ground, completely hardened, tolerance on the Bore Size F7, tolerance on the outer diameter n6
Key features according to our expert
  • Inner diameter: 9,5 mm
  • Length: 12 mm
Specifications / All features
  • Brand: PHANTOM
  • EAN: 8716563438199
  • Supplier number: PHANTOM 848720950
Inner diameter
9,5 mm
Length
12 mm
Norms
DIN 172-A
Tolerance d1 (tol. d1)
F7
Total length (l1)
12 mm
Length (l2)
3 mm
Diameter ø (d3)
18 mm
Tolerance d2 (tol. d2)
n6
Diameter ø (d2)
15 mm
Diameter ø (d1)
9,5 mm
