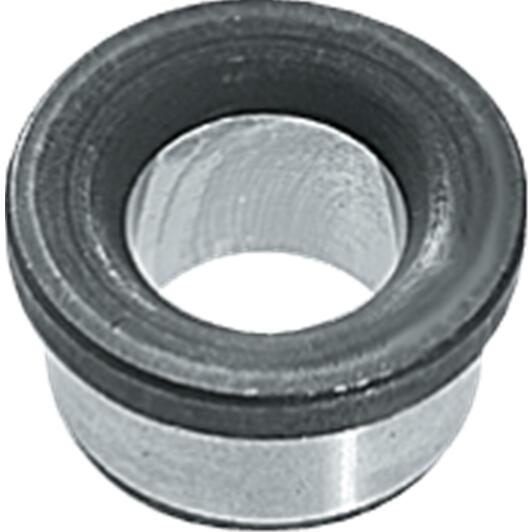

PHANTOM 848720680 drill sleeve DIN 172-A' short version' with collar 6'8 mm

Name: PHANTOM 848720680 drill sleeve DIN 172-A' short version' with collar 6'8 mm
Brand: PHANTOM
SKU: 51590017
Price: 7.77 EUR
Availability: PreOrder

Supplier number: PHANTOM 848720680 | EAN 8716563437925

7.77 tax incl.

€6.42 excl. VAT (incl. all environmental contributions)

On order: delivered from 10/10/2026

Delivery by DHL

✆ Talk to a specialist

Accurate drill bit guidance

Practical benefits

Precise Phantom drill bushing: This DIN 172-A drill bushing provides reliable alignment for your 6.8 mm drill bits in tooling fixtures.
Secure flanged collar: The integrated collar stops the bushing from pushing through your jig plate during repetitive drilling tasks.
Fully hardened construction: With its precision-ground finish and 10 mm length, you achieve consistent drilling accuracy and minimal wear.

In a nutshell

The right choise for

Achieve dependable accuracy on every hole with the Phantom 84.872 din 172-A drill bushing. Featuring an inner diameter of 6.8 mm and a compact length of 10 mm, this short version provides precise guidance for drill bits, making it ideal for pilot drilling prior to M8 tapping. The integrated flanged collar acts as a positive stop, preventing the bushing from pushing through the jig plate during heavy drilling. Fully hardened and precision ground on both the inside and outside, it minimises friction, prevents drill wander, and ensures consistent hole squareness in jigs and fixtures.

Product information FAQ

€7.77

tax incl.

Key features according to our expert

Inner diameter: 6,8 mm
Length: 10 mm

Product Description:

Phantom DIN 172A Drill Bush short series headed
DIN 172A, in- and external ground, completely hardened, tolerance on the Bore Size F7, tolerance on the outer diameter n6

All Features

Inner diameter: 6,8 mm
Length: 10 mm
Standard: DIN 172-A
Tolerance d1 (tol. d1): F7
Total length (l1): 10 mm
Length (l2): 3 mm
Diameter ø (d3): 15 mm
Tolerance d2 (tol. d2): n6
Diameter ø (d2): 12 mm
Diameter ø (d1): 6,8 mm

Brand PHANTOM
51590017
EAN 8716563437925
Supplier number PHANTOM 848720680

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this Phantom drill bush?: This drill bush features an inner diameter of 6,8 mm and a length of 10 mm.
What is the purpose of the collar according to DIN 172-A?: The collar prevents the bushing from being pushed through the jig plate during drilling.
What is a 6,8 mm inner diameter used for?: It provides accurate guidance for 6,8 mm drill bits, commonly used when pre-drilling for M8 threads.
Why choose the short version?: The compact length of 10 mm is ideal for drilling jigs and fixtures with limited installation depth.
How is the drill bush finished?: It is fully hardened and precision ground both inside and outside to minimise friction and wear.
